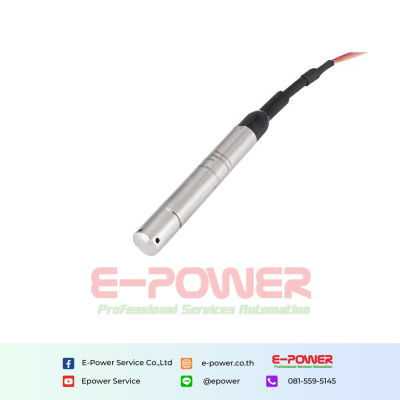

HPT607 Submersible Borehole Level Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
The submersible borehole level sensor is designed for ground water and drilling fluid level measurements. Based on the fluidics design, it can ensure the stability of the measurement.
Application :
- Borehole level sensor
- Deep well measure
- Level sensor in drilling platform
- Level measurement in storm water
- Sediment water level measure
Advantages
01 Slender design Ã19mm Diameter Body
02 All welded SUS316 body and diaphragm
03 Unique waterproof design, IP68
04 Throw in sludge more than 10 years
05 Fluid design is adopted to reduce the impact of medium on the probe
Technical Data
| Range | 0-2m.....500m H2O optional 80m max for SDI-12 signal |
| Output | 4-20mA,0-5V,1-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU |
| Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5VdcÂą5%,12Vdc,3.5-36Vdc |
| Accuracy | Âą0.5%F.S(Typical); Âą0.25%F.S(by customized) @25 degree C |
| Nonlinear | <0.5%FS |
| Resolution | 0.025% F.S |
| Factor of safety | 1.5 F.S |
| Electronic connection | Fixed cable and water proof IP68 |
| Working temperature | -40-80(non-corrosive medium) |
| Temp Compensation | 0°C~50°C |
| Certificate | CE, RoHS |
| Frequency range | 1.850-3.500HZ |
| Cable length | 40-60m |
