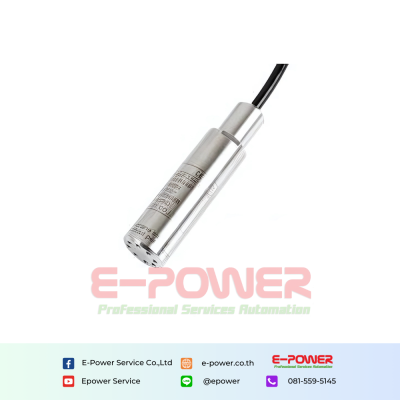

HPT604-LT Fuel Level and Volume Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
This fuel level and volume sensor(oil tank level sensor) is designed based on the "submersible" shape, it is mainly used to measure the level, volume, fuel storage and fuel temperature of fuel tanks (underground storage tanks). With wireless terminals, remote monitoring solutions can be realized.
Application :
- Fuel tank or diesel tank
- Underground oil storage tank at gas station
- Diesel generators
- Refinery
- Irregular shape oil tank
Advantages
01 It can measure the liquid level, volume, oil storage and oil temperature of the oil tank.
02 Compatible to measure the level of fuel tanks with different shapes.
03 The problem of temperature drift and poor accuracy in the full temperature range is solved.
04 "Investment type" design, low maintenance cost in later period.
05 Free technical support, liquid level sensor manufacturer.
Technical Data
| Pressure Range | 0-0.1bar.....2bar / 0-1m.......20m fuel level Optional |
| Burst Pressure | 500% F.S. |
| Accuracy | Âą0.5%F.S (2m level range and between 0-50 degree C); Âą1.0%F.S (0.5mLevel Range<2m level range and between 0-50 degree C) |
| Long Stability | Âą0.1% of span/year |
| Temperature Accuracy | ¹1%F.S. (¹ 1 °C) |
| Working Temp | -40-80°C(non-corrosive medium) |
| Temperature Compensation | 0-80°C |
| Output | RS485 Modbus RTU |
| Power Supply | 3.5-36Vdc |
| Electronic connection | Fixed cable and water proof IP68 |
| Pressure Type | Gauge pressure |
HPT604-LT Fuel Level and Volume Sensor
Fuel Level and Volume Sensor
HPT604-LT
Fuel Level Sensor
Volume Sensor
Level Sensor
Sensor
