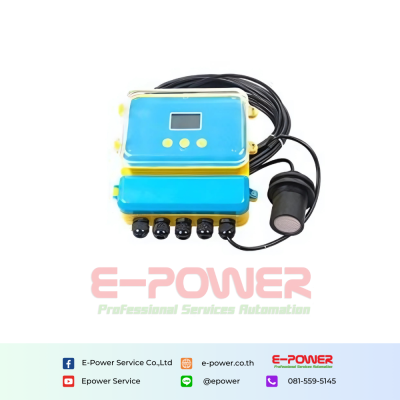

US9000 Long range ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Application :
- Liquid level measurement
- Solid level measure
- Beverages level monitoring
- Non contact measurement in farm warehouse
Advantages
01 Support M49*1.5 mm threaded into type installation and coil clamping type installation
02 Less than 9° Beam angle design ,less than 200ms responsible time to make sure more accuracy
03 Housing adopts the NLEPE synthetic material IP66 waterproof
04 High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Technical Data
| Level Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m |
| Accuracy | 0.5%-1.0% |
| Analog output | 4~20mA/ 510Ω load |
| Relay output | 2 groups for single channel and 4 groups for double channels (optional) AC 250V/ 8A or DC 30V/ 5A, state programmable |
| Ambient temperature | Display instrument: -20~+60 Probe: -20~+80 |
| Power supply | Standard configuration: 220V AC+15% 50Hz Optional: 24VDC 120mA Customized: 12VDC or battery powered |
| Resolution | 3mm or 0.1%FS (Max of them) |
| Display | English language display: Level measurement Distance measurement, transmission value |
| Water Proof | IP65(Meter), IP68(Sensor) |
