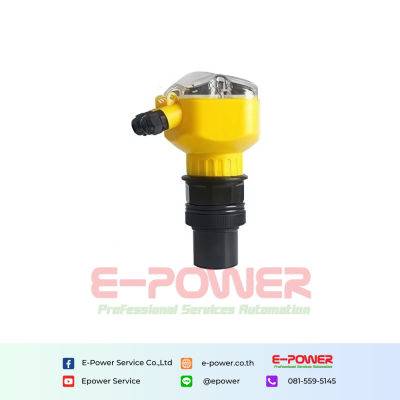

US8000 Ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Application :
- Liquid level measurement
- Solid level measure
- Beverages level monitoring
- Non contact measurement in farm warehouse
Advantages
01 Support M49*1.5 mm threaded into type installation and coil clamping type installation
02 Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
03 Housing adopts the NLEPE synthetic material IP66 waterproof
04 High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Technical Data
| Level Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Accuracy | 0.5%-1.0% |
| Analog output | 4-line system, 4~20mA/ 510Ω load 2-line system, 4~20mA/ 250Ω load |
| Relay output | 2 groups (i.e: AC 250V/ 8A or DC 30V/ 5A) optional, state programmable |
| Resolution | 3mm or 0.1%FS (Max of them) |
| Power supply | Standard configuration: 24VDC Optional: 220V AC+15% 50Hz |
| Ambient temp. | Display instrument: -20~+60 Probe: -20~+80 |
| Communication | 485, 232 communication (optional) (manufacturer agreement) |
| Display | English language display: Level measurement Distance measurement, transmission value |
| Water Proof | Display instrument: IP66, probe: IP68 |
