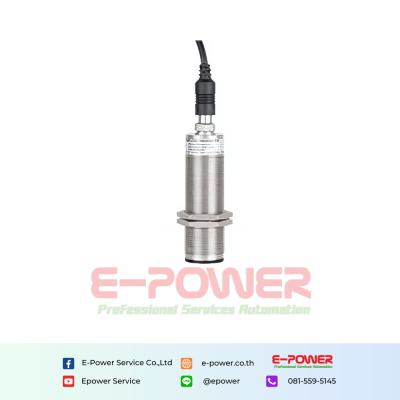

UE3006 Ultrasonic Water Level Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
UE3006 ultrasonic water level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Application :
- Non contact distance level measurement
- Food level monitoring
- Industrial fuel level measurement
- Tank level measurement
Advantages
01 Support M49*1.5 mm threaded into type installation and coil clamping type installation
02 Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
03 Housing adopts the NLEPE synthetic material IP66 waterproof
04 High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Product Specifications
| Brand: | HOLYKELL |
| Model: | UE3006 |
| Blind area | 6cm(1m range);15cm(2m range) |
| Beam angle | < 9° |
| Accuracy | 0.25%F.S. or 3 mm |
| Resolution: | 0.1%F.S.ïž0.5mm min.ïž |
| Temp drift | 0.05%/ïžbuild-in temperature compensationïž |
| Power supply | DC12-24V/50mA |
| Measuring Frequency | 20 KHz~43.0KHz |
| Consumption | < 1.5W |
| Min. resolution | 1mm |
| Protection class | IP65 (default); IP67, IP68 (customized!) |
| Operation temp | -20 ~60 |
| Housing | SUS304/Copper chrome plating/ABS |
| Cable | User defined (with connectors) |
| Dimension | ÎĶ41mm x 106mm x M30 |
| Installation | M30*1.5 male thread |
