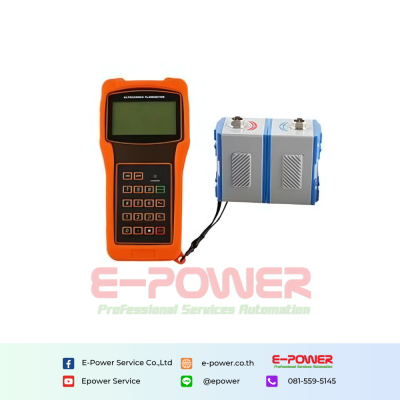

HUF Portable Ultrasonic Flow Meter
The portable ultrasonic flow meter is designed based on the flow measurement method of the clamp-on ultrasonic flow meter. The measurement process does not need to damage the pipeline or contact the measurement medium. The built-in rechargeable battery can work continuously for more than 12 hours.
Application :
- Drinking water, river water, sea water
- Cooling water, hot water, industrial sewage
- Oil ship pump
- Lubricant, diesel, fuel, chemical liquids
- Industrial circulating water
- Diesel fuel, oil flow metering, etc
Advantages
01 High accuracy: Linearity: 0.5%, repeatability:0.2%, accuracy up to Âą1%.
02 Non-contacting measuring: The ultrasonic flow meter will be adsorbed on the outside of pipe, and then finish the measuring. Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
03 Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm
04 Large capacity battery: Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation.
Technical Data
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | Âą1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | Âą10 m/s |
| Pipe Size | 25mm-6000mm |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters |
| Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |
| Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
| Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 210x90x30mm |
| Handset Weight | 500g with batteries |
