RK150-01 Wind Speed Display Controller & Tower crane anemometer (Wired version）
รายละเอียดสินค้า
ดาวน์โหลด
PRODUCT DESCRIPTION

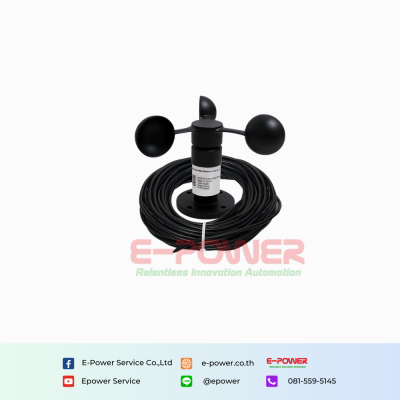

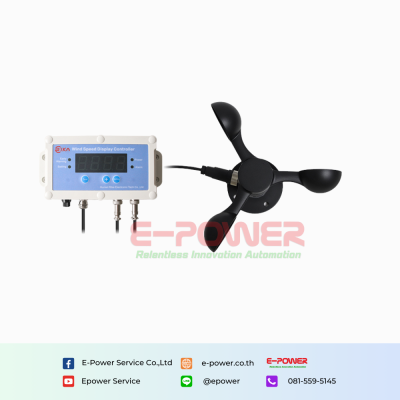

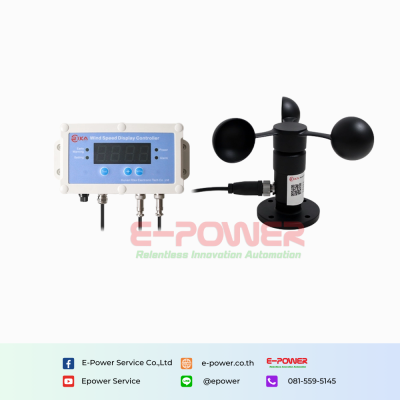

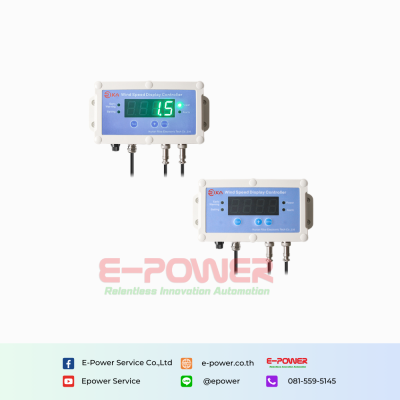

The RK150-01 Wind Speed Display Controller is an advanced anemometer system designed for real-time wind speed monitoring in industrial and safety-critical applications. Equipped with an LED digital display, it provides intuitive visual feedback while integrating dual relay controls for early warnings and alarms. Compatible with both wired (up to 200m) and wireless (1km LOS) sensors, this system ensures rapid response (<100ms) to hazardous wind conditions, making it ideal for cranes, ports, renewable energy sites, and remote infrastructure.
Wind Speed Sensor Technical Specifications Table
| Item | Technical Specification | |
| Range | 0-60m/s | 0-216km/h |
| Accuracy | ±(0.3+0.03V)m/s | ±(1.08+0.11V)km/h |
| Resolution(display) | 0.1m/s | 0.1km/h |
| Early warning | Any value within 1 m/s~59 m/s,the warning value must be lower than the alarm value | Any value within1km/h~212km/h,the warning value must be lower than the alarm value |
| Alarm | Any value within 1 m/s~60 m/s | Any value within 1km/h~216km/h |
| Alarm response time | <100mS | |
| Type of alarm | Sound and light alarm | |
| Contact capacity | 10A@30VDC/250VAC | |
| Wired type | Cable:200m(max.)between sensorand controller | |
| Wireless type | Effective distance:1km(LOS)between sensor and controller | |
| Operating temperature | -30~+70 | |
| Power supply | AC100-240V/DC12V-DC24V | |
| Power consumption | Wired:<3W(sensor & controller) Wireless:sensor:0.25W,controller:2.5W | |
| Ingress protection | Controller:IP54,wind speed sensor:IP65 | |
| Weight(unpacked) | Controller:315g,wind speed sensor:240g | |
| Main material | Controller(housing):ABS,wind speed sensor:Aluminum alloy | |
| Storage condition | 10-50@20%-90%RH | |
