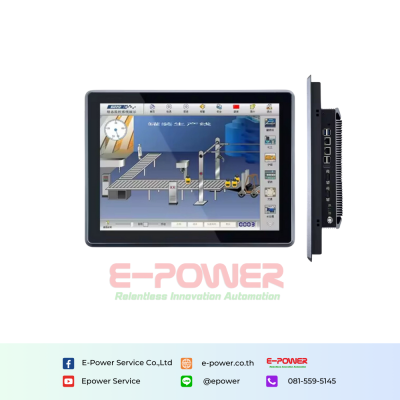

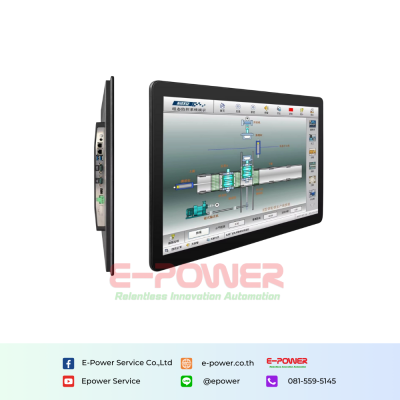

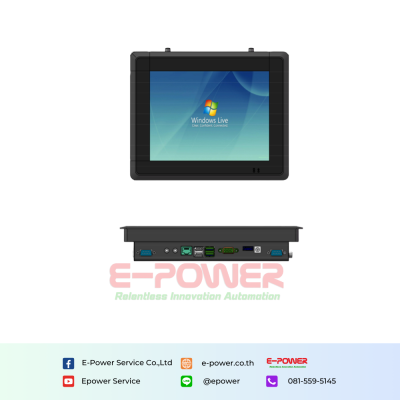

Senke SK-YPC-ZD02 /All In One Touch Screen Industrial Panel PC
รายละเอียดสินค้า
Specification
MODEL : SK-YPC-ZD02
- Size: 10.4", 12.1", 15", 17", 19"
- Embedded & VESA design with sturdy aluminum enclosure & fanless
- Support PCAP or resistive touch
- IP65 (front) for water and dust protection
- Powered by Android or Pentium 3556U / 3558U / CeleronJ6412 / Intel Core i3/i5/i7
- Support 12V/24V DC lockable phoneix power connector
PRODUCT OVERVIEW
The industrial control all-in-one machine is made of all-aluminum material, customized with exclusive die-casting mold, and efficient fin-type heat dissipation structure. It can adapt to various complex and harsh application scenarios with high dust and work stably in high and low temperature environments.
The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.
PRODUCT FEATURE
- Brand new industrial screen display, high-definition and bright colors
- Built-in industrial motherboard with powerful performance, optional configuration, flexible interface expansion and strong compatibility
- Customized die casting aluminum alloy mold
- Equipment operation status indicator
- The product has passed and obtained high and low temperature, EMC, safety and other test reports
PARAMETERS
| Basic parameters | Host Configuration | ||
|---|---|---|---|
| screen size | 12.1 inches | Motherboard | DB01 series industrial motherboard |
| Resolution | 1024*768 | processor | Intel i5-3317U |
| screen ratio | 4:3 (H:V) | platform | Ivy Bridge |
| brightness | 250 cd/m² (Typ.) | Memory | DDR3 4G |
| Contrast | 800 : 1 | Hard drive capacity | 128G |
| Display Color | 262K/16.7M | Graphics | Integrated graphics: Intel HD Graphics 4000 |
| Reaction time | 16 (Typ.) (Tr+Tf) ms | BIOS | 1. AMI BIOS 2. 64M SPI BIOS |
| Viewing angle | 75/75/75/75 (Typ.)(CR>=10) | operating system | Windows 7 |
| Dimensions | 314.9*253.7*56.3mm | Host interface | |
| Hole Size | 301.9*240.7*20.0mm | DC Power Supply | 1*DC IN Phoenix terminal |
| Touch Type | G+G capacitor | HDMI | 1*HDMI OUT |
| working environment | 0~50 (10~ 90% without condensation) | USB | 2*USB3.0, 4*USB2.0 |
| Storage environment | -20~70 ° C (10 ~90% without condensation) | COM | 2*DB9-RS232/RS845 (optional) 4*DB9-RS232 |
| Power Specification | DC:12 V AC: 220V-60Hz | LAN | 1* LAN/2* LAN Onbord RTL 8111 Gigabit Ethernet |
| Material/ Craftsmanship | Aluminum alloy, die-casting integratd molding process | WIFI | 2.4G (standard) / 5.0G (optional) |
| Color | grey | Audio | 1*Phone (output) |
| Installation | Embedded, wall-mounted desktop | Switch | 1* Start switch + indicator light |
