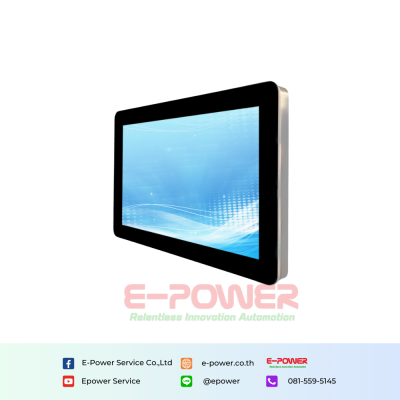

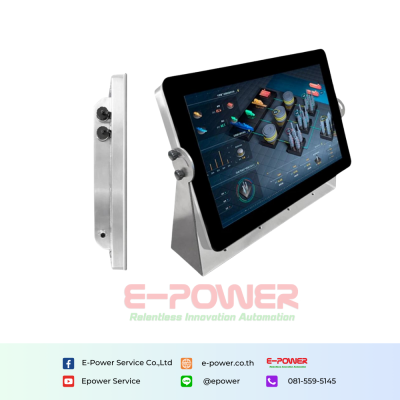

Senke SK-YPC-GDH / 15.6, 21.5 Inch Waterproof Open Frame Industrial Android Panel PC
āļŦāļĄāļ§āļāļŦāļĄāļđāđ :
SENKE
,
Industrial Panel PC
,
IP65 Waterproof All in One Touch Industrial PC
āđāļāļĢāļāļāđ :Senke
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
MODEL : SK-YPC-GDH
15.6", 21.5 "GDseries " Android Panel Pc Windows 7 ïžWindows 10ïžLinux"
- 15.6 Inch, 21.5 Inch
- Customized industrial grade stainless steel profiles, tempered conductive glass
- Stainless steel mold back cover, closed and waterproof and dustproof
- Suitable for complex and harsh occasions such as high temperature resistance
PRODUCT OVERVIEW
The industrial control all-in-one machine adopts industrial-grade aluminum profile structure, customized aluminum alloy die-casting mold, and efficient fin-type heat dissipation structure. It can adapt to various complex and harsh application scenarios with high dust and work stably in high and low temperature environments.
The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.
PRODUCT PARAMETERS
| Basic parameters | Host Configuration | ||
|---|---|---|---|
| Screen Size | 15.6 inches | Motherboard | / |
| Resolution | 1920*1080 | Processor | / |
| Screen ratio | 16:9 (H:V) | Platform | / |
| brightness | 250cd/ãĄ (Typ.) | Memory | / |
| Contrast | 3000 : 1 | Hard Drive Capacity | / |
| Display Color | 16.7M, 72% NTSC | Graphics | / |
| Reaction time | 30 (Typ.)(Tr+Td) ms | BIOS | / |
| Viewing angle | 89 /89 /89 /89 (Typ.)(CR 10) | Operating system | / |
| Dimensions | 400*252*68.79mm | Host interface | |
| Touch Type | G+G capacitor | HDMI | 1*HDMI In |
| Working environment | 0°C~50°C (10~90% without condensation) | USB | 1 * USB2.0 |
| Storage environment | -20°C~70°C (10~90% without condensation) | LAN | 1*DC IN aviation plug |
| Power Specifications | DC: 12V | switch | / |
| Material/Craftsmanship | Aluminum profile structure, aluminum alloy cast aluminum back cover | DC Power Supply | / |
| Color | Silver | COM | / |
| Installation | Wall-mounted, desktop | Audio | / |
| Basic parameters | Host Configuration | ||
|---|---|---|---|
| screen size | 21.5 inches | Motherboard | / |
| Resolution | 1920*1080 | processor | / |
| screen ratio | 16:9 (H:V) | platform | / |
| brightness | 250 cd/mÂē (Typ.) | Memory | / |
| Contrast | 3000 : 1 | Hard drive capacity | / |
| Display Color | 16.7M, 72% NTSC | Graphics | / |
| Reaction time | 13/5 (Typ.) (Tr/Td), 20 (Typ.)(G to G) ms | BIOS | / |
| Viewing angle | 8 9 /8 9 /8 9 /8 9 (Typ.)(CR10) | operating system | / |
| Dimensions | 537*329*68.82mm | Host interface | / |
| Touch Type | G+G capacitor | HDMI | 1*HDMI in |
| working environment | 0~50 (10~ 90% without condensation) | USB | 1 * USB 2.0 |
| Storage environment | -20~70 (10 ~90% without condensation) | DC Power Supply | 19DC IN aviation plug |
| Power Specifications | DC: 12V | switch | / |
| Material\Craftsmanship | Aluminum profile structure, aluminum alloy cast aluminum back cover | WIFI | / |
Senke
IPC
Industrial Panel
Industrial Panel Pc
PC
Touch All in One Pc
Industrial Touch Pc
All In One Computer Touch Panel PC
Touch Panel Pc Industrial
SK-YPC-GDH
15.6
21.5 Inch Waterproof Open Frame Industrial Android Panel Pc
