FCC-300 Coriolis Effect Mass Flow Meter For Oil, Gas, Liquid Processing
A Coriolis effect mass flow meter is an advanced precision device that measures mass flow rate, density, and temperature of fluids in closed pipelines. Operating on the principle of Coriolis force, it provides accurate measuring solutions and readings for a wide range of industries, including chemical, petroleum, water treatment, food and beverage, pharmaceuticals, paper manufacturing, renewable energy production, and more.
This micro motion Coriolis mass flow meter adheres to the GB/T 31130-2014 standard for mass flow measurement, ensuring reliable and consistent performance across applications.
āļāļģāļāļ§āļ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Characteristics
- Ideal for High-Viscosity Fluids: Suitable for slurries and suspensions
- Precise Measurements: No need for temperature or pressure compensation
- Superb Design: Corrosion-resistant and durable
- Wide Applications: Oil, gas, chemical, food and beverage, pharmaceuticals, water treatment, renewable energy production
- Easy to Use: Simple operation, easy installation, and low maintenance
- Advanced Communication: Supports HART and Modbus protocols
Specifications

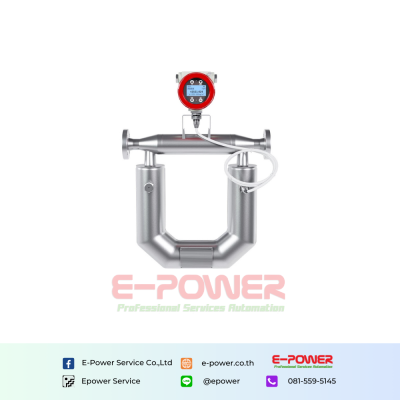

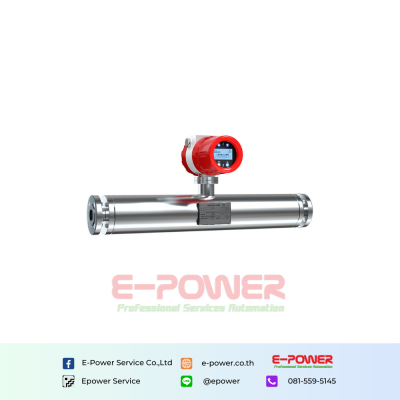

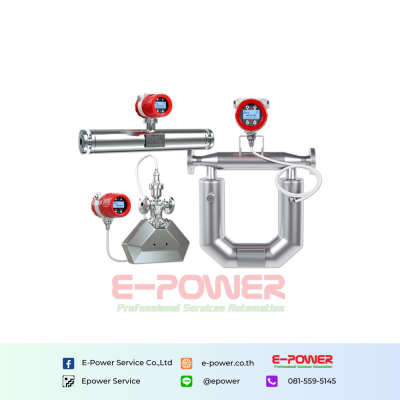

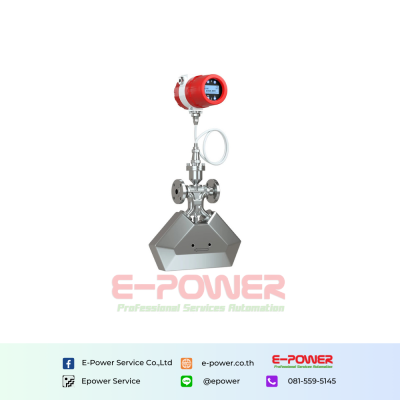

| Diameter | U-type:DN20~DN150; Triangular:DN3~DN15; Straight Tube:DN8~DN80 |
| Measurand | Mass flow, density, temperature |
| Density accuracy | Earth 0.002g/cmÂģ |
| Accuracy | 0.1%,0.15%,0.2% |
| Temperature | -40~+60 |
| Power consumption | <15W |
| Power supply | 220VAC ïž 24VDC |
| Signal output | 4~20mA, RS485, HART |
| Ingress protection | IP67 |
| Density range | (0.3~3.000)g/cmÂģ |
| Repeatability | 1/2 of the measurement error |
| Medium temperature | Standard type: (-50 ~ 200); (-20 ~ 200); High temperature type: (-50 ~ 350); Low-temperature type: (-200 ~ 200) |
| Process pressure | (0~4.0)MPa |
| Humidity | 35%~95% |
| Transmission output | (4 ~ 20) mA, output load (250 ~ 600) ÎĐ |
Product Parameter
| Measured variables | Mass flow, density, temperature |
| Nominal caliber | Straight Tube:DN8~DN80; U-type:DN20~DN150; Triangular:DN3~DN15 |
| Flow rate range | Refer to tables 2 and 3 |
| Density range | (0.3~3.000)g/cmÂģ |
| Temperature measurement range | (-200~300)°C |
| Transmission output | (4ï―20) mA, output load (250ï―600) ÎĐ |
| Communication output | RS485 interface, MODBUS-RTU communication protocol; Hart |
| Frequency (pulse) output | Pulse width: 50% Active: output current 10mA, open circuit voltage 24V'' |
| Power supply | 24VDC/220VAC |
| Power consumption | 15W |
| Electrical Interface | M20*1.5 |
| Accuracy | Flow rate: 0.2%, 0.15%, 0.2%;Density: Âą0.002g/cmÂģ; Temperature: Âą1°C |
| Repeatability | 1/2 of the measurement error |
| Medium temperature | Standard type: (-50ï―200)°C, (-20ï―200)°C; High temperature type: (-50ï―350)°C; Low-temperature type: (-200ï―200)°C; |
| Process pressure | (0~4.0)MPa |
| Pressure Loss | Maximum flow rate corresponds to a pressure loss of 100kPa (with water as the medium) |
| Temperature | -40°C~+60°C |
| Humidity | 35%~95% |
| Protection class | IP67 |
