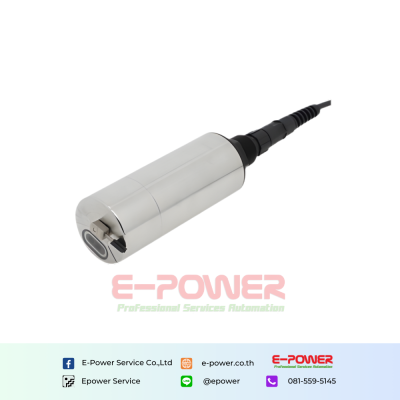

SUP-ADS-V300 Oil-in-Water Sensor
The oil-in-water sensor is a specialized instrument designed for detecting the concentration of oil contaminants in water. It operates based on an optical principle, primarily UV fluorescence, enabling rapid and continuous online monitoring. Equipped with an integrated self-cleaning brush, the sensor effectively removes bubbles and oil residues, reducing fouling interference and extending maintenance intervals, ensuring excellent long-term stability. It supports effective monitoring and early warning of oil pollution in water.
āđāļāļĢāļāļāđ :Supmea
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Features
- Digital sensor with RS485 output and Modbus protocol.
- Real-time online monitoring without sample extraction; higher sensitivity and simplified operation.
- Integrated self-cleaning brush to prevent biological fouling, extending maintenance intervals.
- Advanced optical and filtering technology eliminates ambient light interference.
- High-precision imported UV LED light source with excellent stability, low drift, and long service life.
Specification
Technical Specifications| Parameters | ||
| Electrode Type | Low-Range | High-Range |
| Light Source | UV 254nm LED | UV 360nm LED |
| Measured Variables | Oil-in-Water | |
| Measuring Range | BTEX: (0~1100) ppb PAH: (0~1000) ppb (customizable) | (0~150) ppm |
| Resolution | 0.01ppb | 0.01ppm |
| Limit of Detection | BTEX: 10ppb PAH: 10ppb | Dependent on actual oil sample |
| Linearity | RÂē>0.99 | RÂē>0.99 |
| Communication Output | RS485 interface, Modbus protocol Note: Recommended communication interval 200 ms; 1 s interval preferred | |
| Power Supply | (12~24)VDC, 1A | (5~12) VDC, >500mA |
| Power Consumption | 0.25 W (self-cleaning brush disabled) 0.8 W (self-cleaning brush enabled) | |
| Process Pressure | 0.3MPa | |
| Temperature Range | (0~50) (non-freezing) | |
| Cable Length | 10 m (standard), customizable | |
| Protection Rating | IP68 | |
