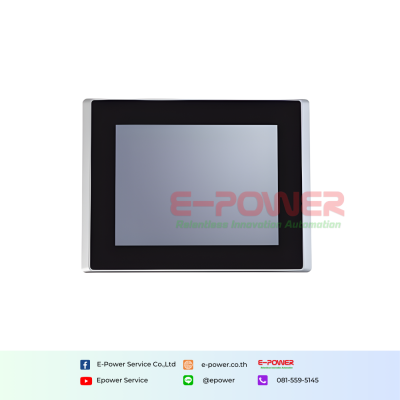

HPM132 Series 8 Inch Panel PC
Equipped with Intel® Elkhart Lake processor 10-wire capacitive multi-touch, surface AG anti-glare treatment supports mainstream fieldbus protocol EtherCAT, real-time Ethernet communication display screen, support for visual configuration software to achieve intelligent interaction
รายละเอียดสินค้า
ดาวน์โหลด
Product Features
- Supports Intel® J1900, J6412, N95 CPU
- LCD+HDMI dual displays
- IP65-rated front panel
- Fanless design with aluminium alloy enclosure
- 9~36V Wide Range DC input
Specifications
| System | |
|---|---|
| Model | HPM132-AC8 |
| Processor *1 | J1900: 4-Core up to 2.42GHz J6412: 4-Core up to 2.60GHz N95: 4-Core up to 3.40GHz |
| Memory *2 | The memory type is determined by the CPU model |
| Ethernet | 2 x GbE RJ45 intel i210-AT |
| I/O Port | 1 x USB3.0, 3 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485(Optional 6xCOM) 1 x Audio Line-out/Mic-in 2 x 8Ω 1W Audio AMP out(Optional) 1x HDMI 1x Clear CMOS |
| Storage *3 | 1 x MSATA SSD 1x SATA( 2.5" SATA) |
| Expansion Slot | Mini-PCIe x 1 full size with SIM Card for 3G/4G Mini-PCIe x 1 half size for WIFI, Bluetooth |
| Watchdog timer | 255 Levels |
| OS Support | Windows® 7/10/11,Linux |
| Mechanical | |
| Construction | Aluminum Design |
| Mounting | VESA 75/ Panel Mount |
| Dimension | 230.3 x 177.3 x 50.5 mm |
| Gross Weight | 1.7KG |
| Environmental | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Storage Humidity | 10~90%@30°C, non-condensing |
| Power Supply | |
| DC input | DC 9~ 36V 2-pin Phoenix Connector |
| LCD | |
| Display Type | 8" TFT-LCD |
| Resolution | 800 x 600 ( Optional 1024x768 ) |
| Max.Colors | 16.2M |
| Luminance | 250 cd/m2 |
| Viewing Angle (CR>=10) | -85 ~ 85°(H),-85~85° (V) |
| Back Light | LED |
| Back Light MTBF(Hours) | 30,000 |
| Touchscreen | |
| Type | P-CAP Multi Touch |
| Light Transmission | >85% |
| Life Time | 7H |
