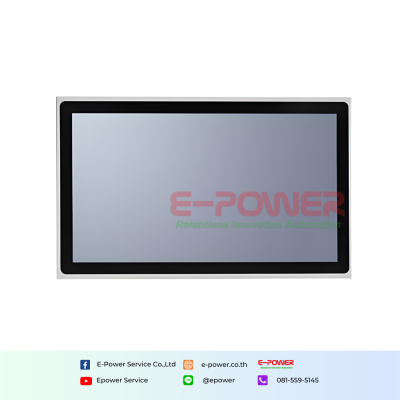

HPM132 Series 18.5 inch Panel PC
Equipped with Intel® Elkhart Lake processor 10-wire capacitive multi-touch, surface AG anti-glare treatment supports mainstream fieldbus protocol EtherCAT, real-time Ethernet communication display screen, support for visual configuration software to achieve intelligent interaction
รายละเอียดสินค้า
ดาวน์โหลด
Product Features
- Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 processors
- LCD+HDMI dual displays
- IP65-rated front panel
- Fanless design with aluminium alloy enclosure
- 9~36V Wide Range DC input
Specifications
| System | ||
|---|---|---|
| Model | HPM132-AC/AR185M | |
| Processor *1 | Intel® J6412,N97 & 4th~12th Gen U-Series Core i3/i5/i7 | |
| Memory *2 | The memory type is determined by the CPU model | |
| Ethernet | 2 x GbE RJ45 intel i210-AT | |
| I/O Port | 4 x USB3.0, 2 x USB2.0 2 x DB-9 COM1&COM2,RS-232/485 1 x Audio Line-out/Mic-in 2 x 8Ω 1W Audio AMP out(Optional) 1 x Remote switch Phoenix 1 x AT/ATX Switch 1x HDMI 1x IDOOR ( 2xLAN / 4xCOM / 14xGPIO Optional ) | |
| Storage *3 | 1 x M.2 2280 SSD ( SATA/NVMe ) 1x SATA( 2.5" SATA) | |
| Expansion Slot | Mini-PCIe x 1 full size with SIM Card for 3G/4G M.2 Key E x 1 for WIFI/BT M.2 Key B x 1 for 5G | |
| Watchdog timer | 255 Levels | |
| OS Support | Windows® 10/11,Linux | |
| Mechanical | ||
| Construction | Aluminum Design | |
| Mounting | VESA 100/ Panel Mount | |
| Dimension | 472.0 x 301.5 x 56.7 mm | |
| Gross Weight | TBD | |
| Environmental | ||
| Operating Temperature | 0°C~60°C | |
| Storage Temperature | -20°C~70°C | |
| Storage Humidity | 10~90%@30°C, non-condensing | |
| Power Supply | ||
| DC input | DC 9~ 36V 2-pin Phoenix Connector | |
| LCD | ||
| Display Type | 18.5" TFT-LCD | |
| Resolution | 1920 x 1080 | |
| Max.Colors | 16.7M | |
| Luminance | 250 cd/m2 | |
| Viewing Angle (CR>=10) | -89 ~ 89°(H),-89~89° (V) | |
| Back Light | LED | |
| Back Light MTBF(Hours) | 30,000 | |
| Touchscreen | Flat 5-wire Resistive | P-CAP Multi Touch |
| Type | Flat 5-wire Resistive | P-CAP Multi Touch |
| Light Transmission | 78% | >85% |
| Life Time | >5 million activations | 7H |
