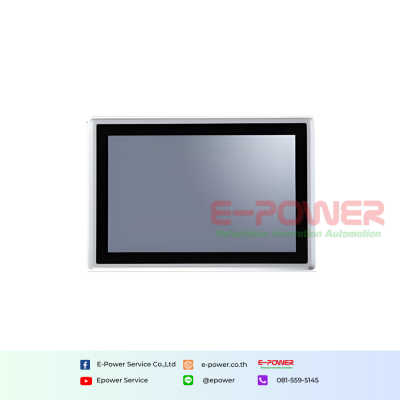

HP11X-AC133 Touch Monitor
Ten-line capacitive multi-touch, surface AG anti-glare treatment. Support USB and serial touch signal input, and serial signal can be transmitted over long distances. Front panel IP65 protection, top rail installation fully enclosed design
Touch accuracy can reach 1mm, high sensitivity.
āđāļāļĢāļāļāđ :HWAINTEK
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Product Features
- 13.3" TFT LCD display with a resolution of either 1920 x 1080
- The front panel complies with IP65 protection rating, ensuring stability and robustness
- Supports VGA and HDMI interfaces
- Capacitive Touchscreen
- 9~28V power input
- Supports panel mount, wall mount, desktop mount or VESA arm mount installation
Specifications
| Product Parameters | ||
|---|---|---|
| LCD Screen | screen type | 13.3" TFT-LCD |
| resolution | 1920 x 1080 | |
| viewing angle (CR>=10) | -85~85° (H), -85~85° (V) | |
| maximum color | 16.7M | |
| luminance | 300 cd/mÂē | |
| contrast ratio | 800:1 | |
| backlight type | LED | |
| backlight lifespan | 30000h | |
| Touch Screen | touch type | 10-Point Capacitive Touchscreen |
| interface type | USB2.0 | |
| transmittance | >85% | |
| surface hardness | Mohs 7H | |
| Overview | display interface | VGA, HDMI |
| size | 347.2 x 229.8 x 43.8 mm | |
| System | OS | - |
| Environmental parameters | operating temperature | -20°C~70°C |
| storage temperature | -30°C~70°C | |
| storage humidity | 10 ~ 90% @ 30°C (non-condensing) | |
| vibration resistance | 5~500 Hz, 1Grms (operating, random) | |
| protection level | The front panel has an IP65 rating | |
