EPS-XF500 Series Compact Weather Stations Sensor
The EPS-XF500 series represents an industrial-grade, highly integrated, maintenance-free all in one compact weather station. Through fully solid-state design with no moving parts, it achieves precise multi-parameter monitoring of wind speed/direction, barometric pressure, light intensity, and radiation within a single unit.ments.
Supporting highly flexible protocol customization, it perfectly adapts to diverse integration needs in smart cities and industrial IoT. With multiple models and functional options, it delivers customizable, durable solutions for renewable energy, smart agriculture, and industrial IoT applications.
Introduction
The XF500 Series Compact Weather Station Sensor is a multi-parameter meteorological monitoring sensor device. The base model collects core meteorological data including temperature, humidity, wind speed, wind direction, barometric pressure, light intensity, and solar radiation.
The series also includes sub-models such as XF500G, XF500S, and XF500L, which respectively expand monitoring capabilities to include light intensity, solar radiation, and third-generation wind speed and direction. Featuring a compact design and flexible functionality expansion, this series delivers customized monitoring solutions for diverse applications.
The XF500L sub-model, specifically enhanced for light intensity, solar radiation, and third-generation wind speed/direction monitoring, finds extensive use in environmental, meteorological, agricultural, photovoltaic, and transportation sectors.Specifications.
Product Features
- Measurement Parameters: Wind Speed/Wind Direction/Temperature/Humidity/Air Pressure/Light Intensity/Radiation
- Protection Rating: IP65/IP66
- Operating Temperature: -40°C to +85°C
- Communication Interface: RS485/Modbus/4-20mA
- Power Supply: DC 9-24V / Solar Power / PoE

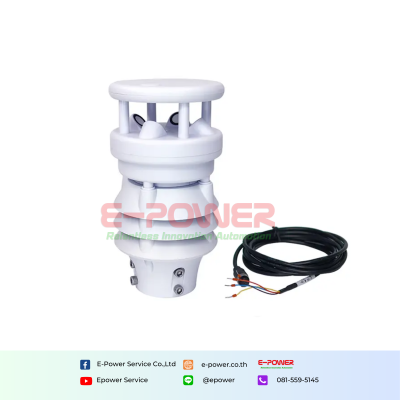

Structure of compact weather station
The XF500 Series industrial compact weather station consists of five integrated meteorological sensing components within a single unified enclosure: ultrasonic wind speed and direction sensor, ambient temperature sensor, relative humidity sensor, atmospheric pressure sensor, and thermal radiation shield housing.
Wind Speed & Direction Sensor: Solid-state ultrasonic technology with no moving parts, providing 360° measurement coverage and immunity to mechanical wear.
Ambient Temperature Sensor: High-precision thermistor element protected by radiation shield, delivering accurate air temperature readings across extended operating ranges.
Relative Humidity Sensor: Capacitive polymer sensing element with fast response and long-term stability for reliable moisture measurement.
Atmospheric Pressure Sensor: Temperature-compensated MEMS barometric transducer sealed within the housing for precise pressure monitoring.
Radiation Shield & Enclosure: Multi-layer thermally-optimized shield with IP65/IP66 rated housing, suitable in harsh outdoor environments.
