EPS-RY-FSX Integrated Wind Speed Direction Sensor
The EPS-RY-FSX integrated wind speed and direction sensor, also called an anemometer sensor, adopts a traditional three-cup anemometer structure, featuring high-strength PC cups and a dynamically balanced housing. Its built-in signal processing unit outputs multiple wind speed signals. This sensor features a reliable structure and responsive activation, effectively capturing wind speed and direction data. It finds extensive application in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, as well as industrial, agricultural, and transportation sectors.
Introduction
The EPS-RY-FSX Integrated Wind Speed and Direction Sensor is a meteorological sensor that combines wind speed and wind direction measurement into a single unit. It measures wind speed using a three-cup anemometer structure and wind direction via a large wind vane design. An internal signal processing unit outputs real-time wind speed data. Constructed from high-strength, corrosion-resistant materials and featuring a smooth bearing system, the sensor ensures long-term stable and accurate wind data collection.
Product Parameters
| Parameter | Specification |
|---|---|
| Spectral range | 400-700nm |
| Sensitivity | 750Ξv/Ξmolm-2s-1 |
| Cosine correction | Up to 80°incident angle |
| Working environment | Temperature-4065°C,humidity |
| Output | Original output 200mv |

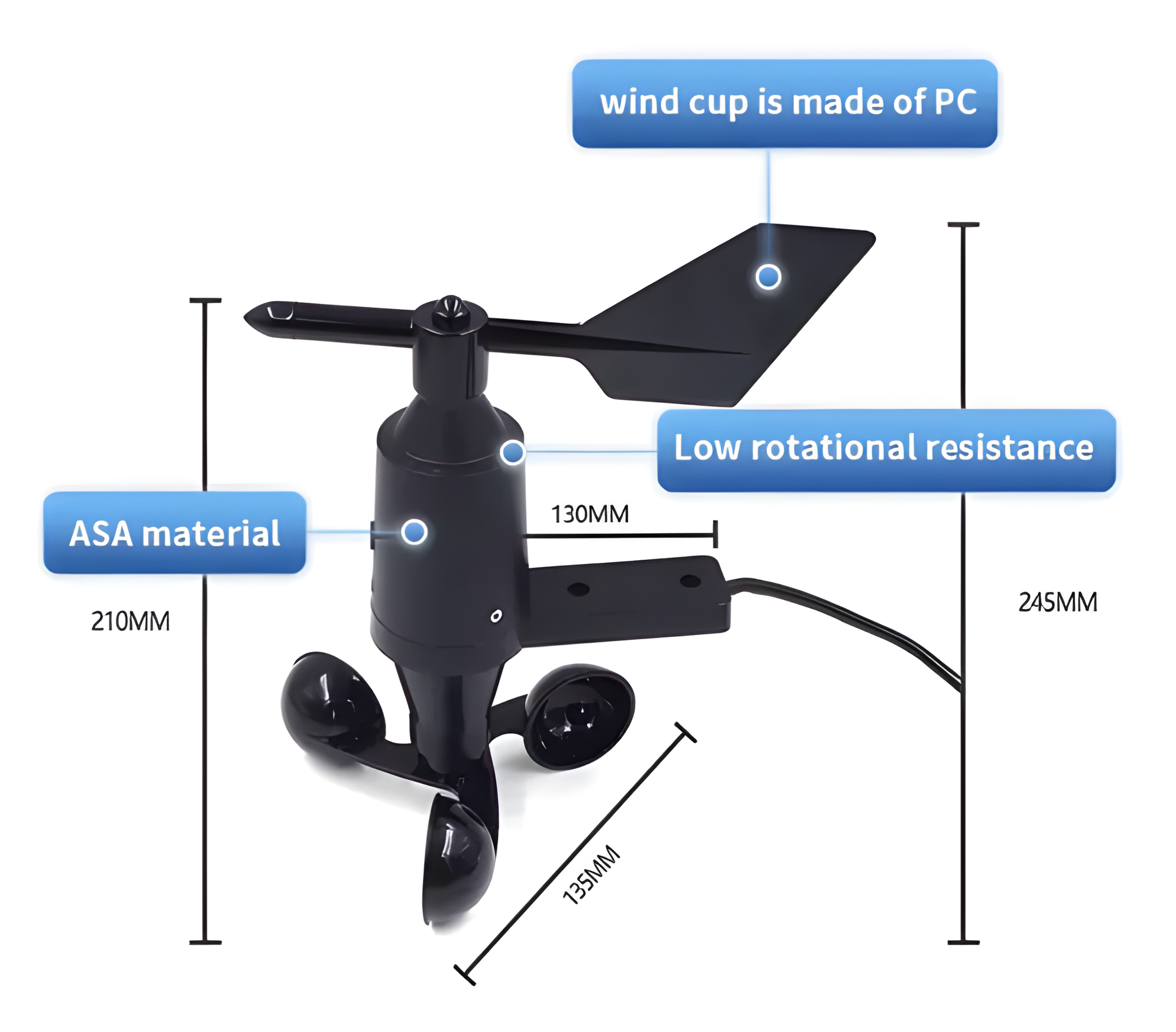

Structure of wind speed and direction sensors

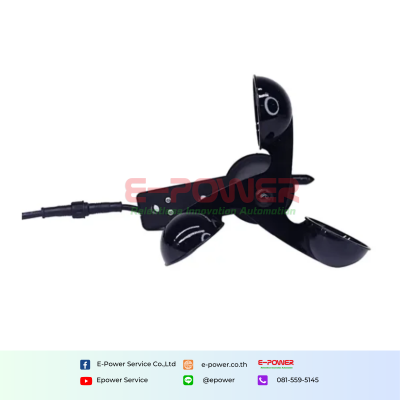

- Wind Speed Measurement Section: Traditional three-cup anemometer design with high-strength PC cups for responsive activation and excellent balance.
- Wind Direction Measurement Section: Large wind vane design effectively captures external wind direction data.
- Signal Processing Unit: Built-in electronic module outputs wind speed signals as required.
- Sensor Housing: Constructed from corrosion-resistant ASA material for long-term durability.
- Bearing System: Smooth bearings ensure flexible rotation and precise data acquisition.
