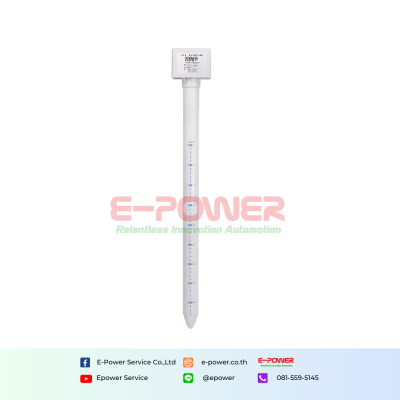

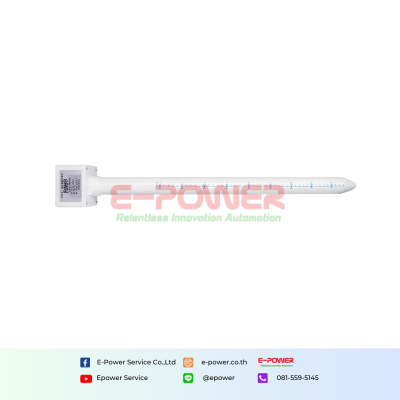

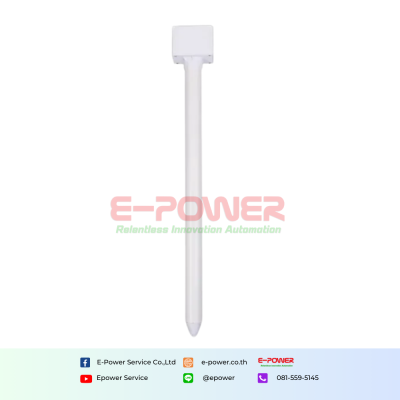

Tubular Soil Monitoring Instrument
Tubular soil monitoring instrument is an intelligent device utilizing high-precision chips and advanced algorithms. Integrated with IoT technology, it monitors soil temperature and humidity at various depths. Data is transmitted to the data center via RS485 output or 4G networks. This device finds extensive application in soil monitoring across farmlands, forest areas, grasslands, and irrigation zones. It also provides critical data support for water conservancy and land disaster prevention, such as monitoring natural hazards like landslides and debris flows.
Introduction
The Tubular Soil Monitor is a high-precision soil temperature and humidity monitoring device specifically designed for multi-layer soil environment monitoring. This equipment measures temperature and humidity across four soil layers and transmits data in real time via RS485 or 4G wireless communication, providing accurate information about soil conditions. It finds applications in agriculture, forestry, water conservancy, grassland management, and other fields.
| Parameter | Specification |
|---|---|
| Humidity range | 0 ~ 100%Vol |
| Soil temperature range | -40~+60°C |
| Sensor working voltage | Sensor input is 5-24V DC |
| Working temperature | -40°C~+80°C |
| RTU power consumption | Standby 10μAh, transmission 100mAh |
Structure of Tubular soil moisture sensor
Sensor Assembly: Includes soil moisture sensors, soil temperature sensors, GPS positioning modules, etc. The sensor assembly is buried in the soil to collect real-time soil temperature and humidity data. The sensor assembly collects data in real time, which is processed and stored by the data acquisition unit. Tubing houses the sensors, the communication module transmits data, and the battery provides power.
