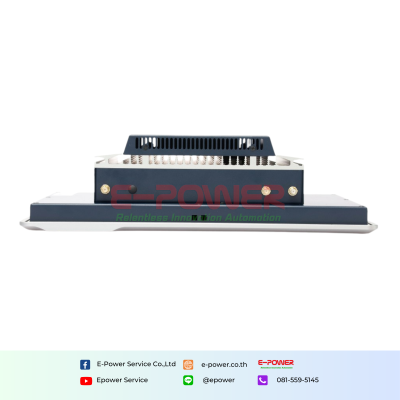

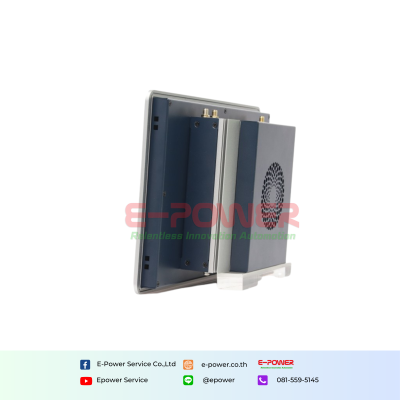

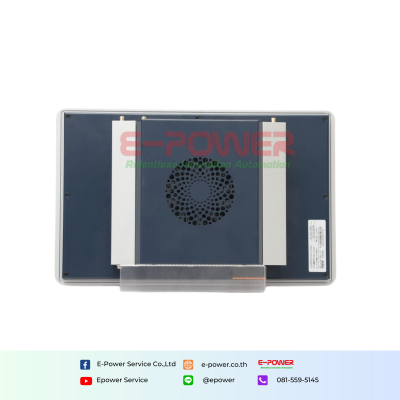

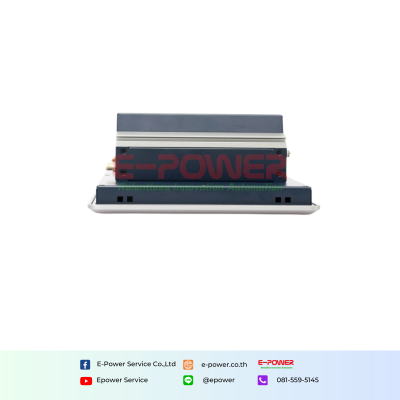

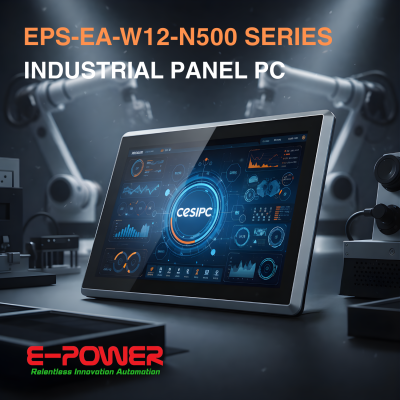

EPS-EA-W12-N500 Series Industrial Panel PC (Front Ops)

Features

• Supports Jetson Orin™ NX / Nano AI modules in multiple specifications, with up to 157 TOPS of edge inference capability.
• Equipped with an NVIDIA Ampere architecture GPU, supporting deep learning inference and video analysis applications.
• Embedded 8-core Arm Cortex-A78AEv8.2 64-bit CPU, meeting high-performance and stringent safety requirements.
• Supports NVIDIA JetPack SDK, CUDA, TensorRT, cuDNN, and a wide range of AI and vision algorithm ecosystems, making it easy to deploy deep learning, vision inference, and robotic applications.

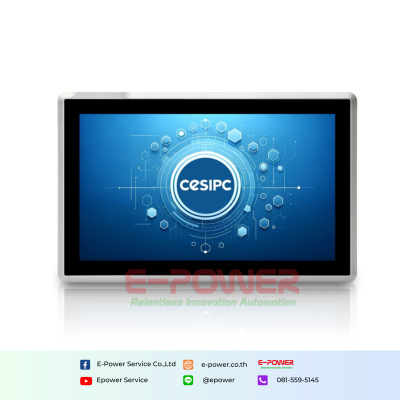

• Supports a 12.5-inch industrial-grade touch display, suitable for edge AI visualization and human-machine interaction scenarios;
• Uses 16:9 TFT LCD display technology with a resolution of 1920 × 1080 (FHD Full HD), providing clear and detailed visuals;
• Utilizes P-CAP (Projected Capacitive) 10-point touch technology, with sensitive touch response and precise positioning.
• Equipped with 4 PoE Gigabit Ethernet ports for integrated power and data for visual terminals
• Supports high-speed buses such as PCIe and CSI to meet vision and data acquisition expansion needs
• Comprehensive industrial interface system: 4 USB 3.0 ports, serial ports, CAN, and GPIO, easily adaptable to various field devices.
• Wide voltage input of 9~36V DC, suitable for complex power supply environments in the field
• Features hardware-level power monitoring with auto-recovery mechanism, automatically resuming operation after power-on, designed for unmanned industrial systems.
• Equipped with CESIPC intelligent temperature control technology and an efficient cooling system to ensure long-term stable operation under high load.
• Supports wireless remote deployment with Wi-Fi / 4G / 5G.
• High-strength aluminum alloy chassis and industrial-grade structural design, balancing heat dissipation performance and long-term stability.

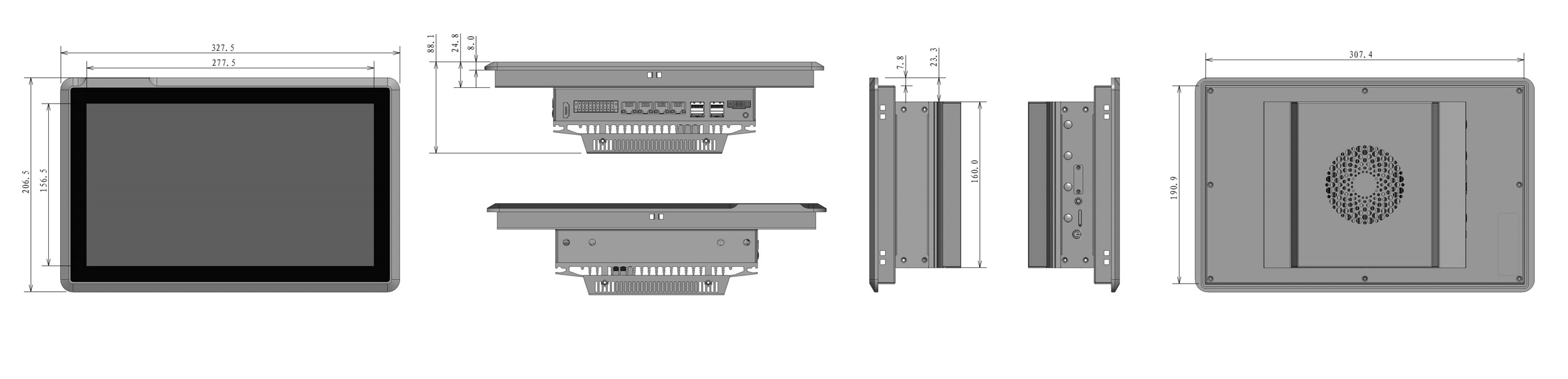

Dimensions

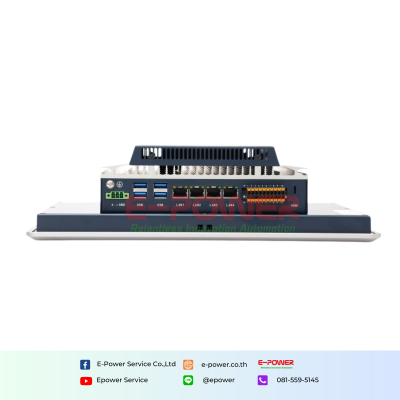

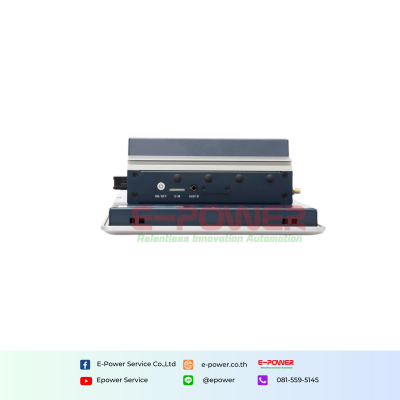

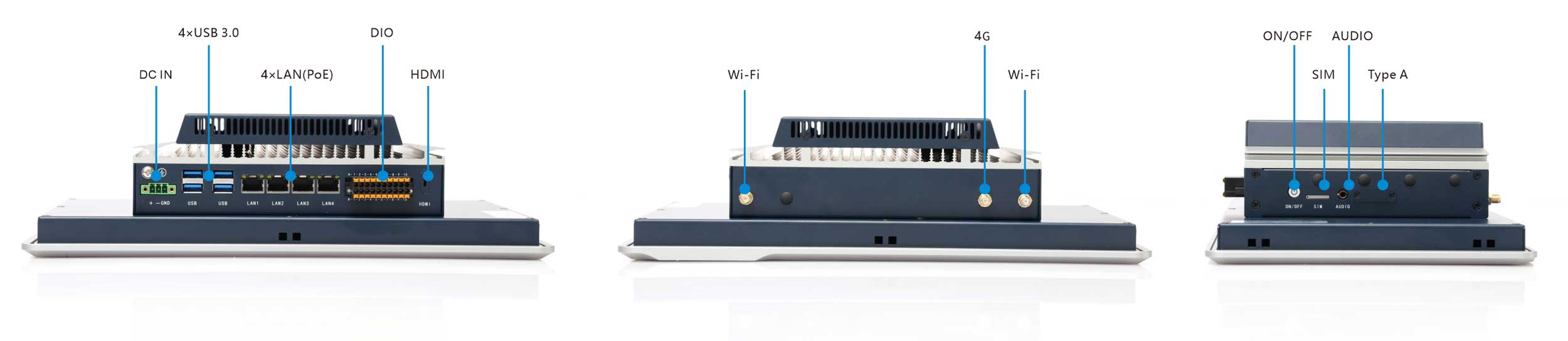

I/O
