Product description

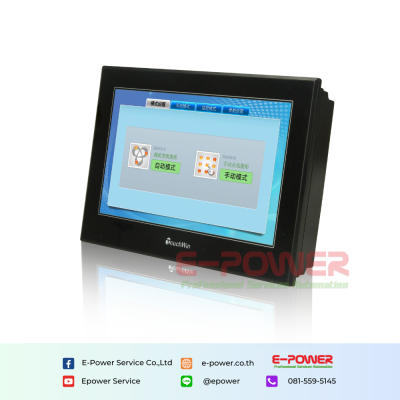

TG serise
- Cover complete display size, the product lineup is abundant
- It has various functions and is suitable for most industrial sites
- USB-A front port design, easy to use (TGC65, TGA62 support)
USB-A front Interface Design, More Convenient Operation
USB-A Interface is used for data import and export. This interface is designed on the front of the panel. When transmitting data, there is on need to open the control cabinet. It is easy to operate and greatly improves the work efficiency.
Product specification
| Product model | TGC65-ET | TGA62-MT TGA63-UT TGA63-ET | TGA62-MT TGA62-ET | TG865-MT TG865-ET | TG765-MT TG765-UT TG765-ET | TG465-MT TG465-UT TG465-ET | TG465-MT2 TG465-UT2 TG465-XT | |
| Product features | Display size | 15.6" | 10.1" | 10.1" | 8" | 7" | 4.3" | |
| Resolution | 1366*768 | 1024*600 | 800*480 | 800*600 | 800*480 | 480*272 | ||
| LCD | TFT LED display, LED backlight | |||||||
| Display color | 16.77 million colors | |||||||
| Brightness | 250 cd/m² | 200 cd/m² | ||||||
| Touch panel | 4 wires resistance mode | |||||||
| LCD life | >50,000 hours, 25C, 24 hours running | |||||||
| Memory | 128MB | |||||||
| Interface | PLC port | RS232/RS422/RS485 | ||||||
| Download port | RS232/RS485 | RS232/RS485 (only - MT2/UT2model support) | ||||||
| USB-A port | USB flash disk port, USB2.0 standard. UT/ET model can support | |||||||
| USB-B port | USB download port, USB 2.0 standard | |||||||
| Ethernet port | Standard RJ45, ET model can support | |||||||
| Electrical features | Input voltage | DC24V (voltage range: DC22V - DC26V) | ||||||
| Consumption current | 730mA | 270mA | 250mA | 200mA | 180mA | |||
| Allowable power loss | Below 10ms(actual power loss less than 1s) | |||||||
| Withstand voltage shock | AC1000V, 10mA, less than 1 miute | |||||||
| Insulation resistance | Above 10MΩ, DC500V | |||||||
| Environment | Operating temperature | O°C~5O°C | ||||||
| Storage temperature | -2O°C~6O°C | |||||||
| Operating humidity | 10%RH~90%RH (no condensation) | |||||||
| Anti-interfere capability | Interfere voltage:1500Vp-p pulse cycleilmS duration time:l minute | |||||||
| Air | Non-corrosive gas | |||||||
| Cooling mode | Nature cooling | |||||||
| Protection level | Front cover IP65 | |||||||
| Dimension | External dimension (mm) | 410.0*270.0*65.0 | 272.2*191.7*51.2 | 272.2*191.7*51.2 | 224.4*170.8*45.5 | 200.4*146.9*48.5 | 152.0*102.0*41.8 | |
| Opening size (mm) | 399.0*259.0 | 260.2*179.7 | 260.2*179.7 | 211.4*157.8 | 192.0*138.5 | 144.0*94.0 | ||
