DM215B 22 inch Capacitive Touch Screen All In One For Embedded（Android）
Quantity
Product description
SKU:DM215B
Key Features:
Key Features:
- 21.5 inch 3mm touch panel industrial grade
- Touch Monitor /Android 11 12 /Win7 10/Linux
- Embedded in Kiosks/cabinets/CNC machine/medical device/parcel locker etc

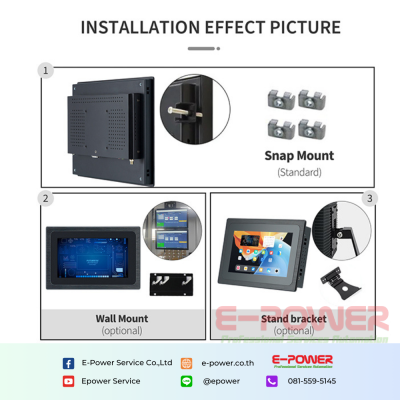

- Embedded with snaps, easy and Versatile and solid
- The specifications can be viewed on Rescources below
Display&Touch
| Panel type | A-Si TFT-LCD, WLED backlight(A type) |
| Size | 21.5 inch (16:9) |
| Display area | 476.64（W）*268.11（H）mm |
| Package Dimension | 580×450×155mm |
| Resolution | 1920*1080P |
| Brightness | >250cd/m2 |
| Touch Screen | PCAP 10point touch |
| Size and Weight | N.W 5.4KG G.W 7.6 KG |
Electrical Performance
| Android consumption | <36 W |
Working Environment
| Operating temperature | 0-°C50°C |
| Operating humidity | 10% - 80% |
| Storage temperature | 0°C-60°C |
| Storage humidity | 0% - 65% |
Configuration
| Chip | RK3568 RK3399 |
| RAM | 2G/4G |
| Storage | 8G/16G/32G |
| GPU | Android HD |
| OS | Android 9/11 |
| Speaker power | 4Ω3w*2 |
| Network | 10/100M adaptive network card Wireless network card 802.11 a/b/g/n |

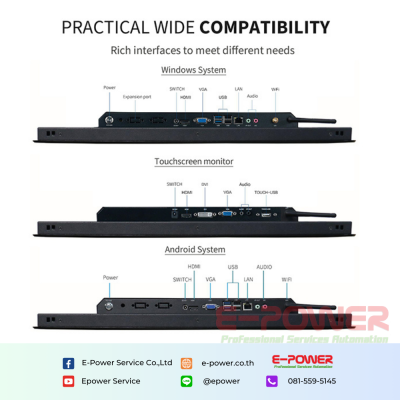

Interface - Android
| HDMI | *1 |
| TD CARD SLOT | *1 |
| USB 2.0 | *2 |
| Audio I/O | *1 |
| RJ45 LAN | *1 |
| TTL/232/485 | Optional |
DM215B
DM215B 22 inch
DM215B 22 inch Capacitive Touch Screen All In One For Embedded（Android）
Capacitive Touch Screen All In One For Embedded（Android）
