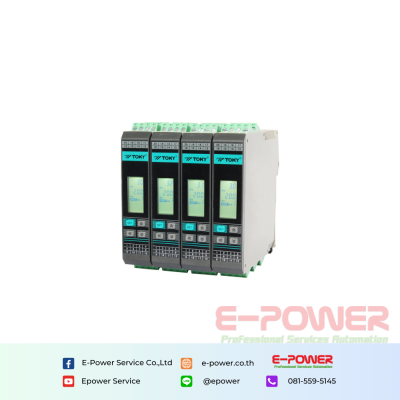

GTH series rail type temperature and humidity controller

Quantity

Brands :Toky

Product description

Sampling rate	0.5，1，2，4，10 times per second select from MPS menu
Relay capacity	AC 250V /2A lifespan of rated load ＞100,000 times
Power supply	AC/DC 100 ～ 240V （85-265V）
Power consumption	< 6VA
Environment	Temperature of indoor: 0 ～ 50 no condensation，Humidity：＜85%RH，altitude＜2000m
Storage environment	-10 ～ 60, no condensation
SSR output	DC 24V pulse level, load<30mA
Current output	DC 4 ～ 20mA load＜500Ω，temperature drift 250PPM
Communication port	RS485 port Modbus-RTU procotol, max input 30 units
Insulation resistance	Input, output, power cabinet＞20MΩ
ESD	IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B
Pulse traip anti-interference	IEC/EN61000-4-4 ±2KV perf.Criteria B
Surge immunity	IEC/EN61000-4-5 ±2KV perf.Criteria B
Voltage drop & short interrption immunity	IEC/EN61000-4-29 0% ～ 70% perf.Criteria B
Dielectric strength	Signal input & output & power 2000VAC 1min,below 60Vlow votage circuit between DC500V ,1min
Total weight	about 400g
Shell material	PA66-FR( Flame Class UL94V-0)
Front mask material	PVC film and PEM silicone key
Power-off data protection	10 years, times of writing: 1 million times
Panel protection level	IP65(IEC60529)
Safety Standard	IEC61010-1 overvoltage catagory II，pollution level 2，level II（Enhanced insulation）

Power supply	minimum 3.3V, maximum 5.5V
Measurement range	Physical range: -40.0 ~125.0°C, safety range: -40.0 ~80°C, resolution 0.1°C
Measurement range	0.0 ～ 100.0%RH；resolution 0.1%RH
Temperature accuracy	within 0.0 ～ 80.0°C, typical value: ±0.2　°C max：±0.4°C
Humidity accuracy	within 0.0 ～ 90.0%RH, typical value ：±2%RH max：±2.5%RH
Wire length	Standard: 2m；max lead length with the controller is less than 3 meters
