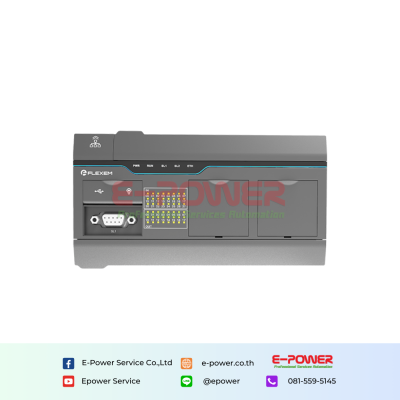

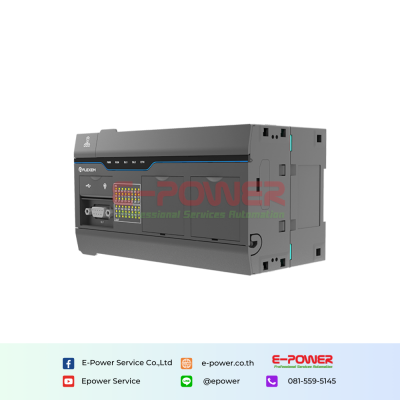

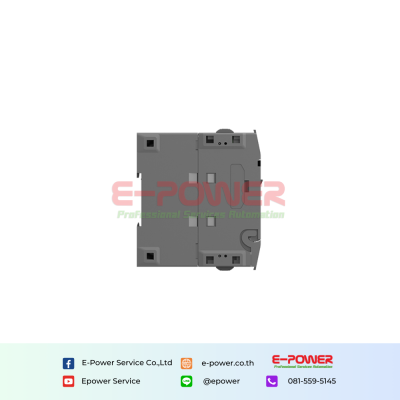

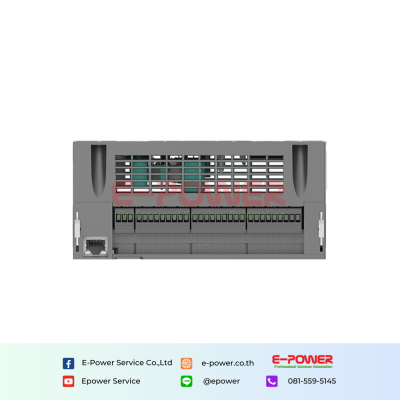

Flexem FC5M-40MN-AC
Input Points: 24
Output Points: 16
High-speed Pulse Input: 7
High-speed Pulse Output: 6
Flexem FC5M-40MN-AC controller, 24 inputs, 16 outputs, 1 Ethernet port, IEC 61131-3 programming, supports Ladder Diagram and ST programming languages, graphical configuration interface, PLC download without power supply, expandable with IoT expansion modules, providing a more economical PLC connectivity solution.
Quantity
Product description
Specs
Hardware
| Input Points | 24 |
| Output Points | 16 |
| High-speed Pulse Input | 7 points 100KHz |
| High-speed Pulse Output | 6 points 100KHz |
| I/O Expansion Modules | It depends on CPU power supply (MAX 31) |
| Expansion Board | 2 |
| USB Type-C | Program download and upload, online monitoring, firmware upgrade |
| RS232/RS485 | Serial port 1: RS485; Serial port 2: RS485/RS232; Baud rate: 4800-115200bps |
| Ethernet Port | 1* RJ45 10/100M self-adaptive |
| RTC | Built in |
| Wiring Structure | Detachable terminal block |
Electrical
| Rated Power | < 30W |
| Rated Voltage | AC 100V~240V，50/60Hz |
| Voltage Limitation | AC 85V~264V，45/66Hz |
| Maximum Peak Current | 40A |
| Allow Momentary Power Outage | 10 ms at 24V DC |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| Environmental Humidity | 5~95%RH (non-condensing) |
| Cooling Method | Natural air cooling |
Mechanical
| Enclosure Material | Engineering plastic |
| Dimensions | 172mm ×90mm × 83mm |
| Programming Architecture | IEC61131-3 |
Port
PORT1
| Pin1 | Port1 RS485-(B) |
| Pin2 | RXD |
| Pin3 | TXD |
| Pin4 | - |
| Pin5 | GND |
| Pin6 | Port1 RS485+(A) |
| Pin7 | - |
| Pin8 | - |
| Pin9 | - |
PORT2
| Pin1 | A: RS485 + |
| Pin2 | B: RS485 - |
| Pin3 | GND |
