Product description

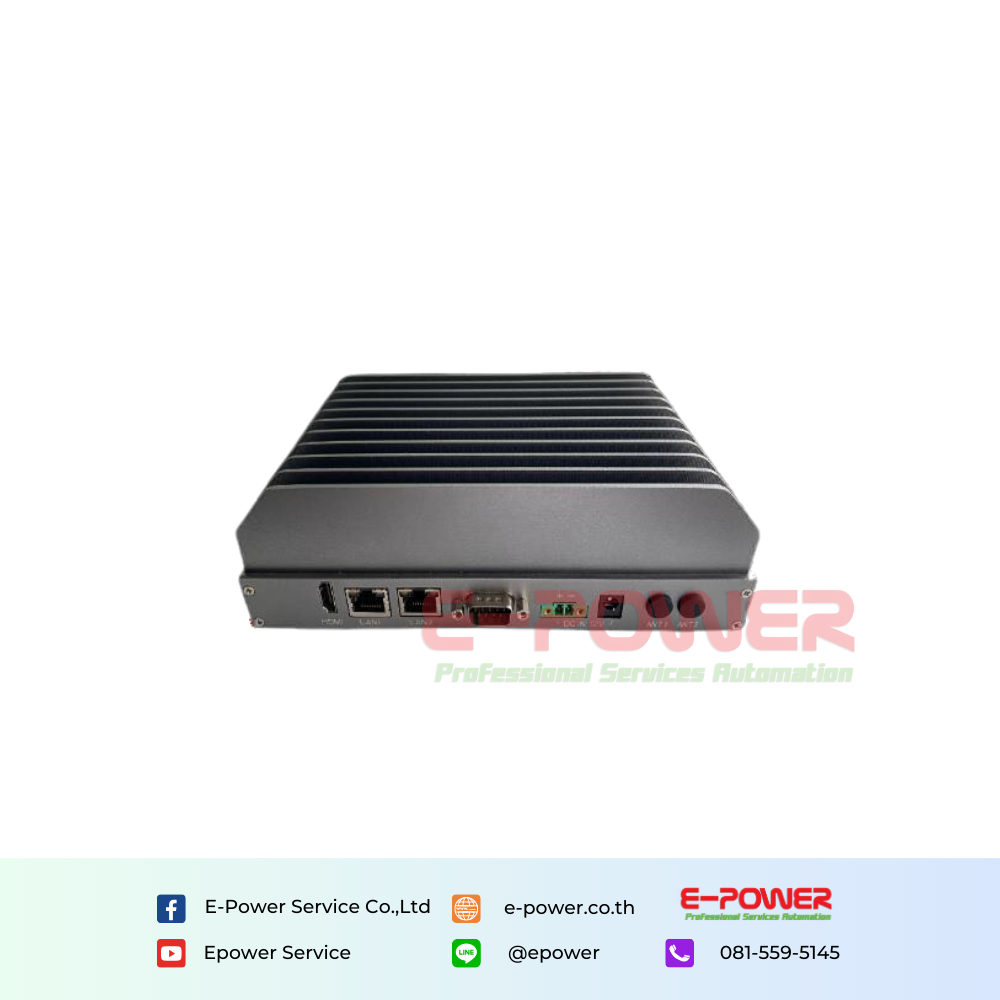

| Model | TABNTN04 series |
| Module | Jetson TX2 NX |
| GPU | Pascal, 256 CUDA-core, 1.3GHz, 1.33TFLOPS(FP16) |
| CPU | Denver 2-core and 4-core Cortex-A57 64bit CPU, 2GHz |
| Encode | Video 1x 4K@60 |
| Decode | Video 2x 4K@60 |
| Memory | 4GB 128bit LPDDR4, 51.2GB/S, 1600MHz |
| Storage | 16GB eMMC + TF card |
Network | 2xGigaLAN(RJ45) |
| 1xWIFI(optional) | |
| Extend | NA |
| IO | 1xUSB2.0, 1xOTG, 1xRS485, 1xCAN |
| 1xUSB3.0, 4xGPIOs | |
| Display | 1xHDMI2.0(TypeA) |
| Power IN | DC_IN 12V/40W, LAN PD power supply(optional) |
| LED | 1xRed LED(Power indication) 1xGreen LED(Controlled by GPIO) |
| MAX P | 18W |
| Material | Aluminium |
| Radiator | Fin, without fan |
| Temp. O | -30°C-65°C |
| Fixed | Table top placement or bracket installation |
| Colour | Iron grey |
| Weight | 1300g(1900g with packaging) |
| Size | 200x99x55(mm) |
| Package | 290x250x90(mm) |
| OS | Ubuntu 18.04(NVIDIA customized system JP4.6) |
| Advantage | High temperature operation |
| Weakness | Larger size, heavy |
