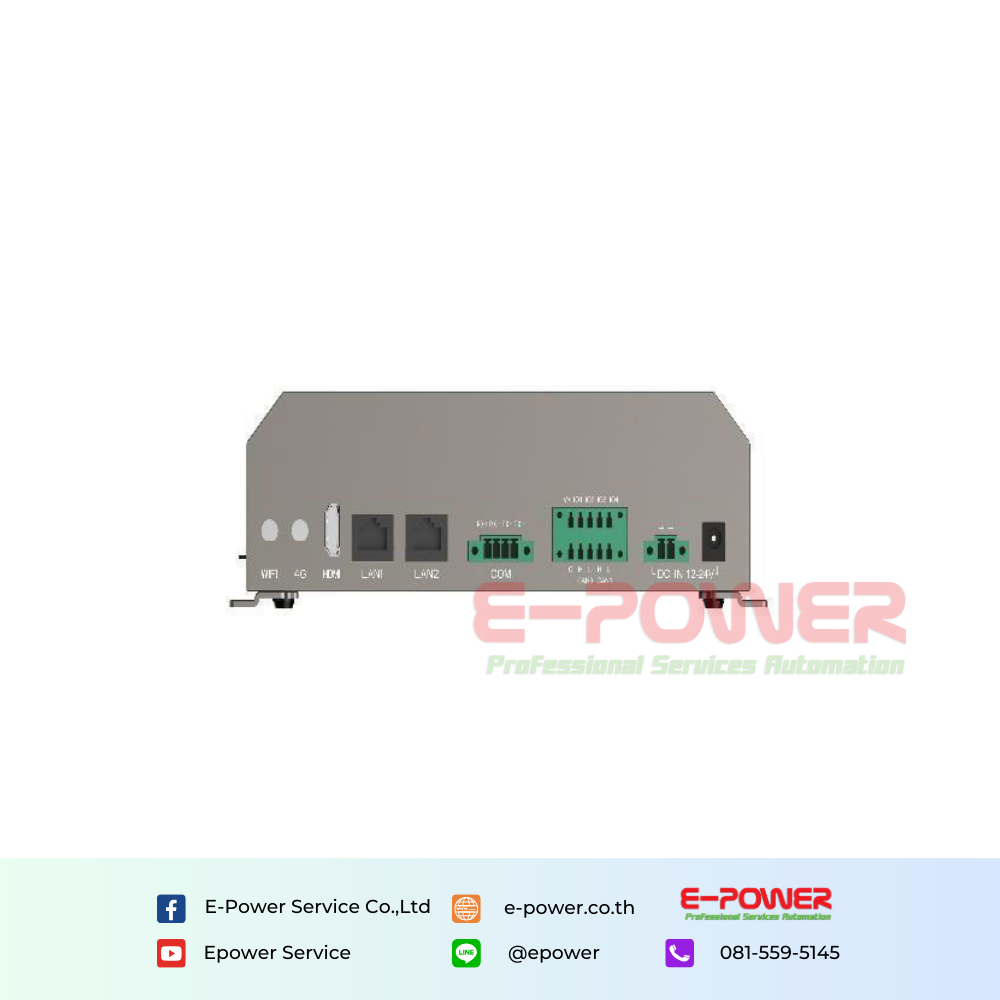

TABNAX02

Quantity

Product description

Model	TABNAX02
Module	AGX Xavier (64GB RAM)
GPU	Volta 512 CUDA cores and 64 Tensor cores, 32TFLOPS(FP16)
CPU	8-core Carmel ARM v8.2 64bit CPU
Encode	H.265 (HEVC), H.264, VP9, JPEG
Decode	H.265 (HEVC), H.264, VP9, VP8, MPEG-4, MPEG-2, VC-1, JPEG
Memory	64GB 256 bit LPDDR4
Storage	32GB eMMC, TF card, M.2 2280 nvme SSD
Network	2xGigaLAN(RJ45), 1x4G(optional)
Extend	1xM.2 2230(PCIe module), 1xMiniPCIE(USB2.0 module), 1xSIM card slot
IO	2xUSB3.0, 2xUSB2.0, 1xOTG, 1xRS485, 2xCAN_FD, 4xGPIOs
Display	1xHDMI2.0(TypeA)
Power IN	DC_IN 12-24V/60W
LED	1xRed LED(Power indication), 1xGreen LED(Controlled by GPIO)
MAX P	45W
Material	Aluminium
Radiator	Fin, without fan
Temp. O	-30°C-40°C（80%loading for 50°C）
Fixed	Table top placement or bracket installation
Colour	Iron grey
Weight	1600g(2300g with packaging)
Size	LxWxH=200x120x55(mm)
Package	290x250x90(mm)
OS	Ubuntu 18.04(NVIDIA JP4.6)
Advantage	Fanless, 5G, SSD, Strong scalability
Weakness	Working temperature is average, Larger size, heavy
