TD116D 11.6 inch Capacitive Touch Panel PC
Quantity
Product description
Technical Parameters
System
| Output/Input | HDMI/VGA |
| Touch | PCAP,10 points touch |

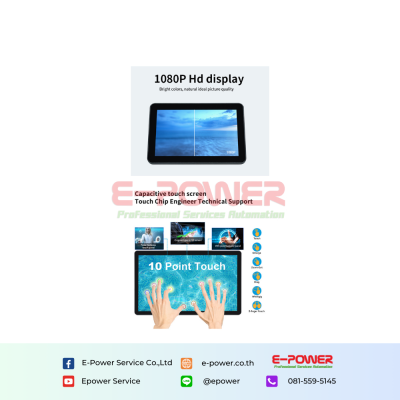

| Display | Full HD |
| Video decoding | MPEG、H.264 etc |

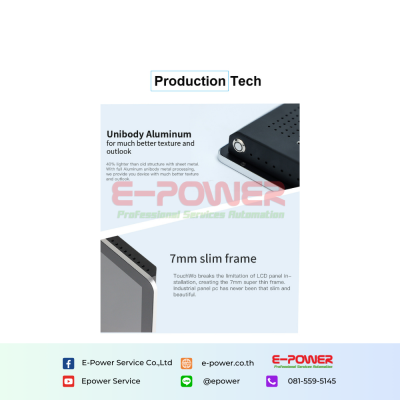

| Design | alloy aluminum frame,metal sheet design, round corner |
| System Integration | Display ,touch, button switch |
LCD Panel
| Screen Type | A-Si,TFT-LCD,WLED back-light, A-type |
| Size | 11.6inch (16:9) |
| Display area | 258（W）*146（H）mm |
| Resolution | 1920*1080 |
| Brightness | is greater than or equal to 250 cd/㎡ |
| Contrast ratio | is greater than or equal to 800：1 |
| Response time | 25(Typ.)(Tr/Td) |
| Number of colors | 16.7M , EDP 30P |
| Refresh rate | 60Hz |
| Viewing angle | 85/85/85/85 (Typ.) CR10) left/right/up/down |
| Life time | 15000 hours |
Touch Panel
| Touch technology | PCAP | ||
| Response time | < 5ms | ||
| Touch points | 10 points standard, zoom in/ zoom out options | ||
| Touch effective recognition | 1.5mm | Data output method | Coordinate output |
| Scanning Frequency | 200Hz | Scanning accuracy | 4096×4096 |
| Communications | USB 2.0,3.0 | Theoretical Clicks | > 50 Millions |
| Firmware | Upgraded by USB | Driver | NO |
| Working Current/Voltage | 180Ma/DC+5V±5% | ||
| Surface Hardness | Chemically tempered, Mohs class 7 explosion-proof glass | ||
| OS | Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP | ||
Power supply parameters
| Input Power | 110－240V AC 50/60Hz | ||
| Output power | DC 12V 3A | ||
| Consumption for Touch Windows | ﹤36W | ||
| Standby power consumption | ﹤0.5W | Speaker | 8Ω3w |
Working environment
| Working environment | 0°C-50°C |
| Working humidity | 10% - 80% |
| Storage temperature | -5°C-60°C |
| Storage humidity | 10% - 70% |
| Altitude | Under 5000 meters |
CPU
| Project | X86 | CustomDesign |
| Chip | N5095/N2940/I5 | YES |
| Ram | 2G/4G/8G/16G | |
| Hard Disk | 32G/64G/128G/256G/512G | |
| Graphics | Core graphics | |
| Definition | 720P/1080P | |
| Operating System | Win 7/ Win 8/Win 10/ Linux | |
| Internet | Integrated 10/100/1000M，wireless 802.11a/b/g/n | |

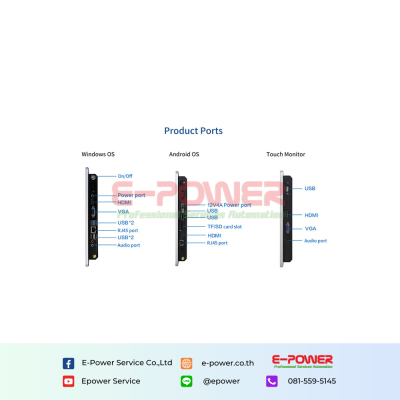

Interfaces & Accessories
Interfaces for Windows Touch PC
| DC Jack | 2.5mm DC12V*1 | RJ45 | 1 |
| VGA | 1 | HDMI | 1 |
| USB | 4 | Earphone /MIC | 1 |
| WIFI | 1 | TTL/232/485 options *2~6 | |
Accessories
| Instructions | 1 |
| Power Adapter | 1 |
| Wall mount/bracket | 1 |
| Warranty Card | 1 |
| Certificate | 1 |
| Wifi Antenna | 1 |
Mechanical Parameters
| Size | 11.6" |
| Display size | 258 * 146 mm （16：9） |
| Machine size (W * H *T) | 292.5×180.5×31.5mm |
| Package size (W * H *T) | 450×283×83mm |
| Mounting bracket | Wall mounted |
| VESA hole | 75×75 mm |
| Wall screw specifications | M4 |
| Net weight | 1.19KG |
| G.W (packaging) | 2.34KG |
