TD185 18.5 inch Capacitive Touch Panel PC
Quantity
Product description
Technical Parameters
System
| Output (Android PC) | HDMI/VGA output inside |
| Input（Touchscreen monitor） | VGA、HDMI 、DVI input |

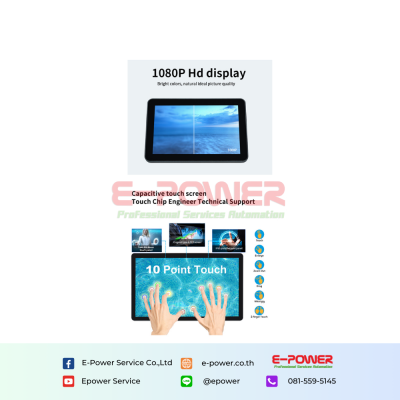

| Touch | PCAP,10 points touch, |
| Display | HDMI/VGA 1080 |
| Video decoding | (Full HD) MPEG、H.264 etc |

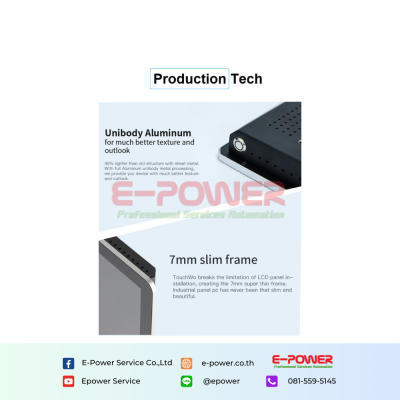

| Design | alloy aluminum frame,metal sheet design, round corner |
| System Integration | PC,Display ,touch, button switch |
LCD Panel
| Screen Type | A-Si,TFT-LCD, back-light, A-type |
| Size | 18.5 inch (16:9) |
| Display area | 410.8（W）*231.4（H）mm |
| Resolution | 1366*768 （Optional 1920*1080P） |
| Brightness | is greater than or equal to 250 cd/㎡ |
| Contrast ratio | is greater than or equal to 1000：1 |
| Response time | 14(Typ.)(G to G)ms |
| Number of colors | 16.7M ,99% sRGB < EDP 30 Pins > |
| Refresh rate | 60Hz |
| Viewing angle | 89/89/89/89 (Typ.) CR10) left/right/up/down |
| Life time | 30000 hours |
Touch Panel
| Touch technology | Capacitive touch screen | ||
| Response time | <5ms | ||
| Touch points | 10 points standard, zoom in/ zoom out options | ||
| Touch effective recognition | 1.5 | output method | Coordinate output |
| Scanning Frequency | 200Hz | Scanning accuracy | 4096×4096 |
| Communications | USB 2.0,3.0 | Theoretical Clicks | 50 Millions |
| Firmware | Upgraded by USB | Driver | NO |
| Working Current/Voltage | 180Ma/DC+5V±5% | ||
| Surface Hardness | Chemically tempered, Mohs class 7 explosion-proof glass | ||
| OS | Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP | ||
Power supply parameters
| Input Power | 110－240V AC 50/60Hz | ||
| Output power | DC 12V 5A | ||
| Consumption for Touch window | <60W | ||
| Consumption for Touch monitor | ﹤20W | ||
| Consumption for Touch Android | ﹤36W | ||
| Standby power consumption | ﹤0.5W | Speaker | 4Ω3w |
Working environment
| Operating temperature | 0°C-50°C |
| Working humidity | 10% - 80% |
| Storage temperature | -5°C-60°C |
| Storage humidity | 0% - 70% |
| Altitude | Under 5000 meters |
CPU
| Project | Touchscreen Monitor | Android | x86 elite version | x86 Deluxe Edition | CustomDesign |
| Chip | An external host is required. For detailed parameters, please refer to 3.1 | Quad core RK3288 Hexa-core RK3399 Quad core RK3568 | Default: Intel N5095/J3710/ J4125/J1900 | Industrial control board I3/I5/I7 | YES |
| Ram | 2gb/4gb | 2gb/4gb/8gb/16gb | |||
| Hard Disk | Standard 8G | SSD 32G/64G/128G/256G/512G | |||
| Graphics | 16/32G | 2.5" HDD: 500G/1T (optional) | |||
| Android HD | nuclear display | ||||
| Definition | 720P/1080P | ||||
| Operating System | Version number 7.1 (3568, version 11.0) | Win 7/ Win 8/Win 10/ Linux | |||
| NIC | Integrated 10/100 / 1000M adaptive network card, wireless network card 802.11a / b / g/ n | ||||

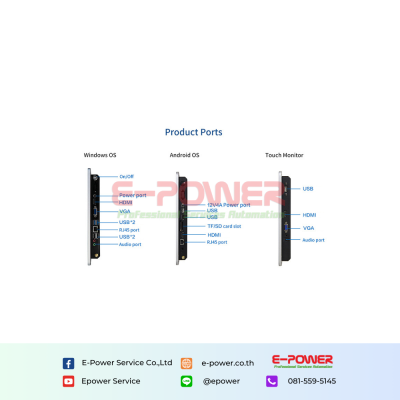

Interfaces & Accessories
Interfaces for Touchscreen Monitor
| DC Jack | 2.1mm | Audio | 1 |
| VGA | 1 | HDMI input | 1 |
| USB touch port | 1 | DVI | 1 |
Interfaces for Android Touch PC
| DC Jack | 2.1mm | Headphone | 1 |
| RJ45 | 1 | HDMI | 1 |
| USB(with OTG) | 2 | WIFI | 1 |
| TF /SD card slot | 1 | TTL/232/485 options | |
Interfaces for Windows Touch PC
| DC | 2.5mm DC12V*1 | RJ45 | 1 |
| VGA | 1 | HDMI | 1 |
| USB | 4 | Headphone | 1/1 |
| WIFI | 1 | TTL/232/485 options(2-6) | |
Accessories
| Instructions | 1 |
| AC Power line | 1 |
| Power Adapter | 1 |
| Wall mount/bracket | 1 |
| Warranty Card | 1 |
| Certificate | 1 |
| Cable | HDMI *1; USB*1 (touch monitor only) |
| WIFI | *1 (standard on PC/Android only) |
Mechanical Parameters
| Size | 18.5" |
| Display size | 410.8 *231.4 mm （16：9） |
| Machine size (W * H *T) | 461（W）×286（H）×42.6（T）mm(E) |
| Package size (W * H *T) | 520（W）×450（H）×145（T）mm |
| Mounting bracket | Wall mounted (0.48kg) |
| VESA hole | 100×100 mm |
| Wall screw specifications | M4 |
| Net weight | 4.7KG |
| G.W (packaging) | 6.6KG |
