Technical Parameters
Motor type : Stepper motor
Flow range : 50-105ml/min
Power : 25 W
Rated current : 1.2A
Control mode : Stepper motor driver
Weight : About 450g
Rated voltage : 24V
Pump tube material and lifetime : BPT: 1000h, Silicone: 200h
Motor lifetime : 6000h
Tube code and size : B16(3.2mm×6.4mm), B25(4.8mm×8.0mm), S16(3.2mm×6.4mm), S25(4.8mm×8.0mm)
Motor speed : 100 RPM
Flow rate : 50 ml/min(B16), 95 ml/min(B25), 55 ml/min(S16), 105 ml/min(S25)
Number of rotors : 2
Reference noise value : <60dB (actual measurement at 50cm distance under ambient noise of 35dB)

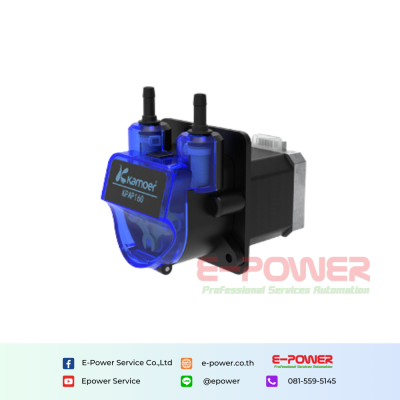

Manual KPAP160 Peristaltic Pump Product Manual
