BL330 ARM Based IIoT Computer Gateway

ARM Based IIoT Computer Gateway Item No.: BL330 The ARMxy BL330 series is an ARM-Based IIoT Computer Gateway. It is based on the Allwinner Technology T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor.

Introduction

The ARMxy BL330 series ARM based gateway is an IIoT Computer Gateway designed for Industrial Data Acquisition and Remote Monitoring. The ARM based gateway is based on the Allwinner Technology T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor. This IIoT computer gateway features an ARM Cortex-A7 processor with clock speed of up to 1.2GHz. It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByte DDR3 RAM and ROM.
The BL330 series ARM based gateway offers a rich array of interfaces including 1-3 10/100M Ethernet ports, 2 x USB 2.0 ports,1 x optional HDMI 2.0a port,1 x optional X series IO board,2 x optional Y series I/O boards.These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL330 also supports hardware decoding of 1080P@60fps videos.
Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
The BL330 series IIoT computer gateway supports a range of operating systems anddevelopment tools, including Linux-5.4.61 and Linux-RT-5.4.61 kernels,Ubuntu 20.04 operating system,Docker containers, Node-Red,Qt-5.12.5 and Qt-5.11.3 for graphical interface development.In addition, BL330 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamless integration withvarious mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL330 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL330 Node Red gateway.
The BL330 series ARM based gateway has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.



Product Selection Guide
The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SoM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SoM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL330-SOM330-X10, means 1 Ethernet port, 256MB NAND Flash, 256MB DDR3 RAM, and 2 RS485 ports.
If you need to add WiFi, then you would append "W" to the host model number. For example: BL330W-SOM330-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL330L-SOM330-X10

_____________________________________________________________

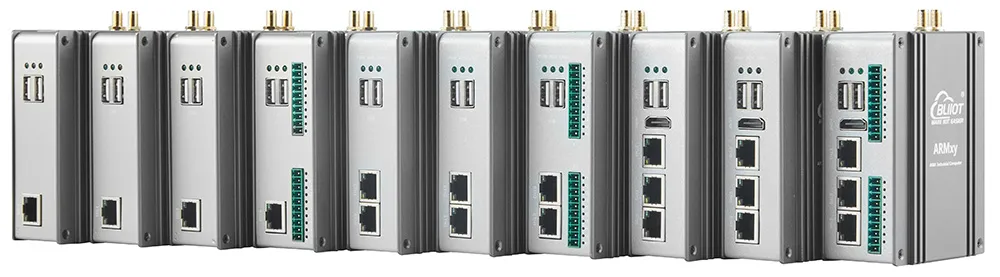

ARMxy BL330 Model List

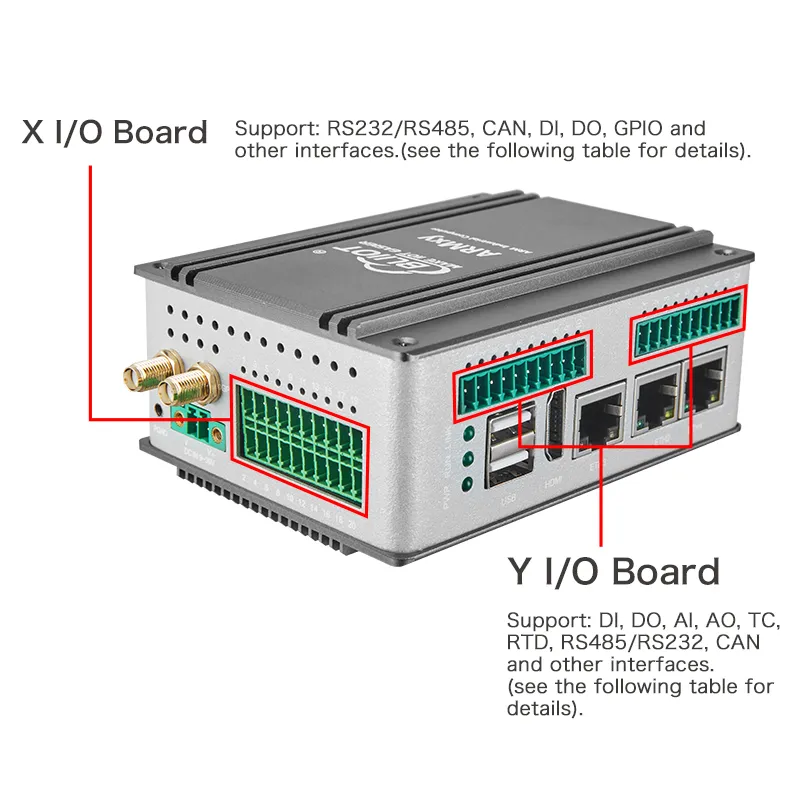

ModelETHUSBHDMIX board IO
Slot
Y board IO
Slot

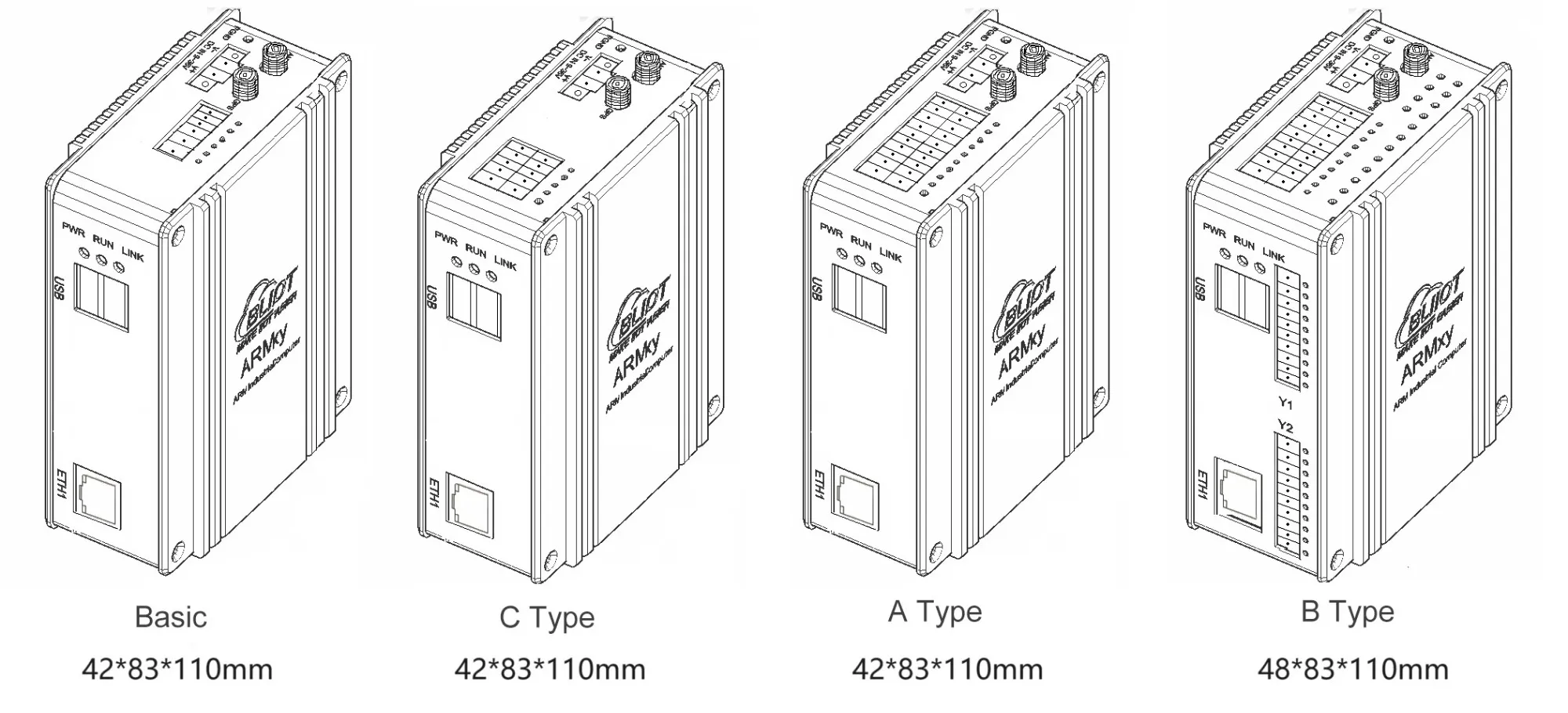

Dimension
BL3301x10/100M2X1x6PINX42x83x110mm
BL330A1x10/100M2X1x20PINX42x83x110mm
BL330B1x10/100M2X1x20PIN248x83x110mm
BL330C1x10/100M2X1x10PINX42x83x110mm
BL3312x10/100M2X1x6PINX42x83x110mm
BL331A2x10/100M2X1x20PINX42x83x110mm
BL331B2x10/100M2X1x20PIN248x83x110mm
BL3323x10/100M211x6PINX42x83x110mm
BL332A3x10/100M211x20PINX42x83x110mm
BL332B3x10/100M211x20PIN248x83x110mm



ARMxy BL330 SOM Model List

ModelMCUClock SpeedKernelNand Flash
eMMCDDR3Temperature
SOM330T113-i
1.2GHz2 x A7256Mbyte/256MByte-40~85°C
SOM331T113-i1.2GHz2 x A7256Mbyte/128MByte-40~85°C
SOM332T113-i1.2GHz2 x A7/4GByte256MByte-40~85°C
SOM333T113-i1.2GHz2 x A7/4GByte512MByte-40~85°C
SOM334T113-i1.2GHz2 x A7/8GByte512MByte-40~85°C
SOM335T113-i1.2GHz2 x A7/8GByte1GByte-40~85°C
SOM336T113-i1.2GHz2 x A7/4GByte256Mbyte-20~70°C



X Series I/O Board Model List
You can choose the right X-series I/O board according to your needs, and the number of pins of the X-series I/O board should be adapted to the shell.

ModelRS232/485CANDIDOGPIOPIN
102xxxx6PIN
11x2xxx6PIN
1211xxx6PIN
13xx22x6PIN
14xx4xx6PIN
15xxx4x6PIN
16xxxx46PIN
204xxxx10PIN
2131xxx10PIN
2222xxx10PIN
234x44x20PIN
243144x20PIN
252244x20PIN
262x84x20PIN
271184x20PIN
282x12xx20PIN
291112xx20PIN
30xxxx1620PIN



Y Series I/O Board Model List
Depending on your needs, you can choose the right Y-series I/O board, and the Y-series I/O modules are suitable for all Y-slots.

ModelDescription ModelDescription
Y014DI+4DO, NPNY434AO, 0~5/10V
Y024DI+4DO, PNPY464AO, ±5V/±10V
Y118DI, NPNY512RTD, 3-Wire PT100
Y128DI, PNPY522RTD, 3-Wire PT100
Y138DI, Dry ContactY532RTD, 4-Wire PT100
Y218DO, PNPY542RTD, 4-Wire PT100
Y228DO, NPNY56Resistance measurement
Y244DO, RelayY57Voltage measurement
Y314AI, single-ended, 0/4~20mAY584TC
Y334AI, single-ended, 0~5/10VY634RS485 or RS232
Y344AI, differential, 0~5/10VY954 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), NPN
Y364AI, differential, ±5V/±10V
Y374 IEP MeasurementY964 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), PNP
Y414AO, 0/4~20mA



Note: When Y63:4-channel RS485 is selected, the second Y-board
will fail and can only be supplemented with an empty board.
