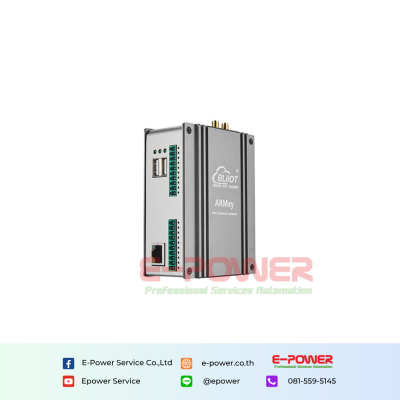

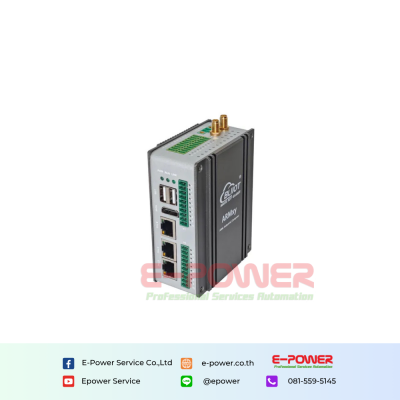

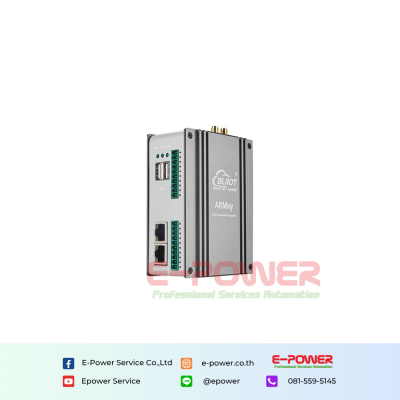

BL370 ARM Based Embedded Industrial PC

ARM Based Embedded Industrial PC Item No.: BL370 The ARMxy series ARM embedded computer BL370 series is an ARM Based Embedded Industrial PC with flexible I/O. It is designed with the Rockchip RK3562/RK3562J processor, featuring a quad-core ARM Cortex-A53 and a single-core ARM Cortex-M0.

Introduction

ARMxy BL370 ARM based Embedded computer powered by the Rockchip RK3562/RK3562J processor with a quad-core ARM Cortex-A53 and a single-core ARM Cortex-M0. The Arm Based Industrial PC offers up to 1.8GHz/2.0GHz clock speed and comes with 8/16/32GB eMMC storage, 1/2/4GB LPDDR4X RAM, and a built-in 1TOPS NPU for deep learning. The embedded computing features multiple I/O interfaces, including 1-3 10/100M Ethernet ports, USB 2.0, HDMI 2.0, and I/O boards for data acquisition and control. The ARM based Embedded computer supports 1080P@60fps H.264 video encoding, 4K@30fps H.265 video decoding, and communication modules like Bluetooth, WiFi, 4G, and 5G via Mini PCIe. Compatible with Linux, Ubuntu 20.04 it supports Docker, Node-RED, and Qt for IoT development. The BL370 series embedded computing is widely used in fields such as industrial control, edge computing, AIoT, artificial intelligence, communication management systems, AGV robots, machine vision inspection, robotics, industrial IoT gateways, energy storage systems, automation control, and transportation rail systems.



Product Selection Guide
The ARMxy series ARM based Embedded computer adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse I/O configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SoM Model Number - X Board Model Number - Y1 Board Model Number - Y2 Board Model Number
For example: BL370-SOM370-X10 means 1 Ethernet port, 8GB eMMC, 1GB LPDDR4X, and 2 RS485 ports.
If you need to add WiFi, then you would append "W" to the host model number. For example: BL370W-SOM370-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL370L-SOM370-X10

_____________________________________________________________

ARMxy BL370 Model List

ModelETHUSBHDMIX board IO
Slot
Y board IO
Slot
Dimension
BL3701x10/100M2X1x6PINX42x83x110mm
BL370A1x10/100M2X1x20PINX42x83x110mm
BL370B1x10/100M2X1x20PIN248x83x110mm
BL370C1x10/100M2X1x10PINX42x83x110mm
BL3712x10/100M2X1x6PINX42x83x110mm
BL371A2x10/100M2X1x20PINX42x83x110mm
BL371B2x10/100M2X1x20PIN248x83x110mm
BL3723x10/100M211x6PINX42x83x110mm
BL372A3x10/100M211x20PINX42x83x110mm
BL372B3x10/100M211x20PIN248x83x110mm



ARMxy BL370 SOM Model List

ModelMCUClock SpeedKernelNPUeMMCLPDDR4XTemperature
SOM370RK3562J1.8GHz4 x A53 +M01TOPS8GByte1GByte-40~85°C
SOM371RK3562J1.8GHz4 x A53 +M01TOPS16GByte2GByte-40~85°C
SOM372RK3562J1.8GHz4 x A53 +M01TOPS32GByte4GByte-40~85°C
SOM373RK35622.0GHz4 x A53 +M01TOPS8GByte1GByte0~70°C
SOM374RK35622.0GHz4 x A53 +M01TOPS16GByte2GByte0~70°C
SOM375RK35622.0GHz4 x A53 +M01TOPS32GByte4GByte0~70°C



X Series I/O Board Model List
You can choose the right X-series I/O board according to your needs, and the number of pins of the X-series I/O board should be adapted to the shell.

ModelRS232/485CANDIDOGPIOPIN
102xxxx6PIN
11x2xxx6PIN
1211xxx6PIN
13xx22x6PIN
14xx4xx6PIN
15xxx4x6PIN
16xxxx46PIN
204xxxx10PIN
2131xxx10PIN
2222xxx10PIN
234x44x20PIN
243144x20PIN
252244x20PIN
262x84x20PIN
271184x20PIN
282x12xx20PIN
291112xx20PIN
30xxxx1620PIN



Y Series I/O Board Model List
Depending on your needs, you can choose the right Y-series I/O board, and the Y-series I/O modules are suitable for all Y-slots.

ModelDescription ModelDescription
Y014DI+4DO, NPNY434AO, 0~5/10V
Y024DI+4DO, PNPY464AO, ±5V/±10V
Y118DI, NPNY512RTD, 3-Wire PT100
Y128DI, PNPY522RTD, 3-Wire PT100
Y138DI, Dry ContactY532RTD, 4-Wire PT100
Y218DO, PNPY542RTD, 4-Wire PT100
Y228DO, NPNY56Resistance measurement
Y244DO, RelayY57Voltage measurement
Y314AI, single-ended, 0/4~20mAY584TC
Y334AI, single-ended, 0~5/10VY634RS485 or RS232
Y344AI, differential, 0~5/10VY954 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), NPN
Y364AI, differential, ±5V/±10V
Y374 IEP MeasurementY964 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), PNP
Y414AO, 0/4~20mA



Note: When Y63:4-channel RS485 is selected, the second Y-board
will fail and can only be supplemented with an empty board.
