BL410 ARM Based SBC Embedded Industrial PC

ARM Based SBC Embedded Industrial PC Item No.: BL410 The ARMxy BL410 series is an ARM based SBC embedded Industrial PC based on the Rockchip RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz.

Introduction

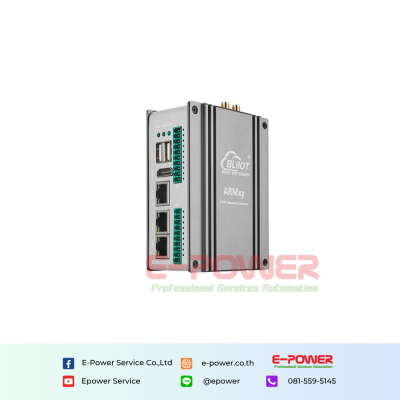

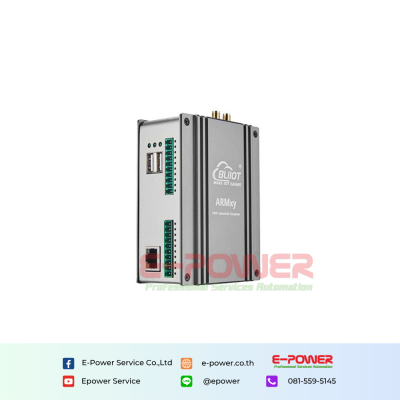

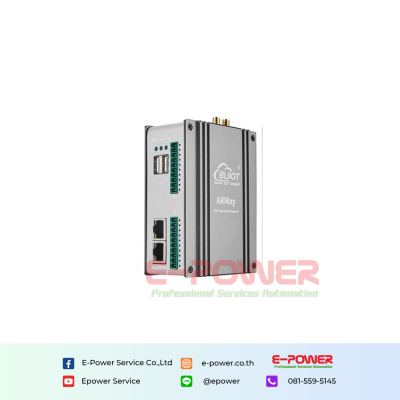

ARMxy BL410 is a Linux industrial computer. The embedded PC is based on the Rockchip RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz. The ARM based SBC device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM. Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.
BL410 series Linux industrial computer offers a rich array of interfaces including 1-3 10/100M Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series I/O board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL410 also supports hardware decoding of 1080P@60fps videos.
Additionally, Embedded PC features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
BL410 Linux industrial computer support Linux-4.19.232, Linux-RT-4.19.232 kernels, Ubuntu20.04, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools. In addition, BL410 Embedded PC is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamless integration with various mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL410 ARM-based SBC. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410 ARM based SBC.
The BL410 series industrial computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This industrial computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.



Product Selection Guide
The ARMxy series industrial computers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL410-SOM410-X10, means 1 Ethernet port, 8GB eMMC storage, LPDDR4X is 1GByte, and 2 RS485
If you need to add WiFi, then you would append "W" to the host model number. For example: BL410W-SOM410-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL410L-SOM410-X10

_____________________________________________________________

ARMxy BL410 Model List

ModelETHUSBHDMIX board IO
Slot
Y board IO
Slot
Dimension
BL4101x10/100M2X1x6PINX42x83x110mm
BL410A1x10/100M2X1x20PINX42x83x110mm
BL410B1x10/100M2X1x20PIN248x83x110mm
BL410C1x10/100M2X1x10PINX42x83x110mm
BL4112x10/100M2X1x6PINX42x83x110mm
BL411A2x10/100M2X1x20PINX42x83x110mm
BL411B2x10/100M2X1x20PIN248x83x110mm
BL4123x10/100M211x6PINX42x83x110mm
BL412A3x10/100M211x20PINX42x83x110mm
BL412B3x10/100M211x20PIN248x83x110mm



ARMxy BL410 SOM Model List

ModelMCUClock SpeedKernelNPUeMMCLPDDR4Temperature
SOM410RK3568J1.8GHz4 x A551TOPS8GByte1GByte -40~85°C
SOM411RK3568J1.8GHz4 x A551TOPS16GByte2GByte -40~85°C
SOM412RK3568J1.8GHz4 x A551TOPS32GByte4GByte -40~85°C
SOM413RK3568B22.0GHz4 x A551TOPS8GByte1GByte 0~70°C
SOM414RK3568B22.0GHz4 x A551TOPS16GByte2GByte 0~70°C
SOM415RK3568B22.0GHz4 x A551TOPS32GByte4GByte 0~70°C



X Series I/O Board Model List
You can choose the right X-series I/O board according to your needs, and the number of pins of the X-series I/O board should be adapted to the shell.

ModelRS232/485CANDIDOGPIOPIN
102xxxx6PIN
11x2xxx6PIN
1211xxx6PIN
13xx22x6PIN
14xx4xx6PIN
15xxx4x6PIN
16xxxx46PIN
204xxxx10PIN
2131xxx10PIN
2222xxx10PIN
234x44x20PIN
243144x20PIN
252244x20PIN
262x84x20PIN
271184x20PIN
282x12xx20PIN
291112xx20PIN
30xxxx1620PIN



Y Series I/O Board Model List
Depending on your needs, you can choose the right Y-series I/O board, and the Y-series I/O modules are suitable for all Y-slots.

ModelDescription ModelDescription
Y014DI+4DO, NPNY434AO, 0~5/10V
Y024DI+4DO, PNPY464AO, ±5V/±10V
Y118DI, NPNY512RTD, 3-Wire PT100
Y128DI, PNPY522RTD, 3-Wire PT100
Y138DI, Dry ContactY532RTD, 4-Wire PT100
Y218DO, PNPY542RTD, 4-Wire PT100
Y228DO, NPNY56Resistance measurement
Y244DO, RelayY57Voltage measurement
Y314AI, single-ended, 0/4~20mAY584TC
Y334AI, single-ended, 0~5/10VY634RS485 or RS232
Y344AI, differential, 0~5/10VY954 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), NPN
Y364AI, differential, ±5V/±10V
Y374 IEP MeasurementY964 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), PNP
Y414AO, 0/4~20mA



Note: When Y63:4-channel RS485 is selected, the second Y-board
will fail and can only be supplemented with an empty board.
