BL450 ARM Based Embedded SBC AIoT Edge Computing

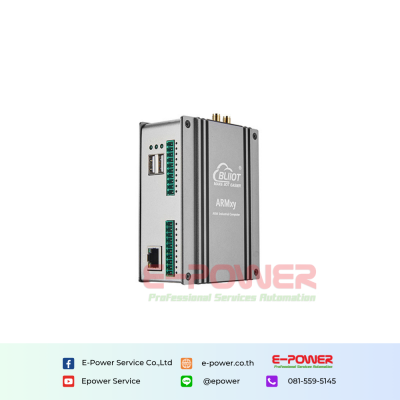

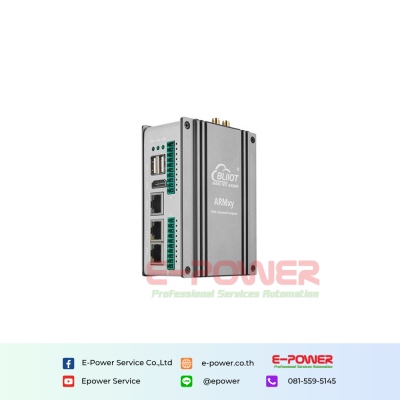

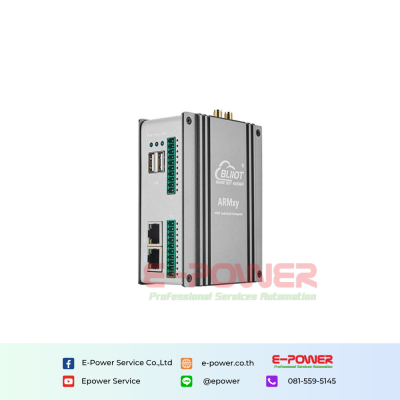

ARM Based Embedded SBC AIoT Edge Computing Item No.: BL450 BL450 AIOT Edge Computer is an Embedded SBC based on the Rockchip RK3588J/RK3588 processor, featuring a quad-core ARM Cortex-A76 + quad-core ARM Cortex-A55 + triple-core ARM Cortex-M0 architecture.

Introduction

BL450 Series embedded single board computers with flexible I/O configuration, based on the Rockchip RK3588J/RK3588 processor, featuring a quad-core ARM Cortex-A76 + quad-core ARM Cortex-A55 + triple-core ARM Cortex-M0 architecture, witha clock speed of up to 2.0G/2.4GHz. The AIOT edge computer is equipped with 32GB/64GB/128GB eMMC and 4GB/8GB/16GB LPDDR4X RAM and ROM configurations. Supporting a rich set of I/O interfaces, it also integrates a 6TOPS NPU, enabling deep learning capabilities. The BL450 series ARM embedded PC
is widely used in industrial control, edge computing, AIoT, artificial intelligence, communication management, AGV robots, machine vision inspection, robotics, industrial IoT gateways, energy storage systems, automation control, and transportation infrastructure.
BL450 Series embedded single board computer offers 1 to 3 optional RJ-45 network ports, including two 10/100/1000M ports and one 10/100M adaptive port, along with 2×USB 3.1, one optional HDMI 2.1, and optional X-series and Y-series I/O boards for communication, PWM output, pulse counting, and other data acquisition and control functions. It supports 8K@30fps H.264 video encoding and 8K@60fps H.265 video decoding. Built-in Mini PCIe interface allows support for Bluetooth, WiFi, 4G, and 5G communication modules.
BL450 AIOT edge computer supports multiple operating systems, including Linux-5.10.209, Linux-RT-5.10.209, Ubuntu 20.04, Debian 11, and Android 13. It is also compatible with Docker containers, Node-Red, and Qt-5.15.10 for graphical development. The BLIoTLink industrial protocol conversion software enables fast industrial data acquisition and conversion, facilitating seamless integration with mainstream IoT cloud platforms and industrial SCADA software. Additionally, the BLRAT remote access tool provides remote access and maintenance, while Node-Red allows for rapid IoT application development.



Product Selection Guide
The ARMxy series AIOT edge computers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SoM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL450-SOM450-X10, means 1 Ethernet port, 32GB eMMC storage, LPDDR4X is 4GByte, and 2 RS485
If you need to add WiFi, then you would append "W" to the host model number. For example: BL450W-SOM450-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL450L-SOM450-X10

_____________________________________________________________

ARMxy BL450 Model List

ModelETHUSBHDMIX board IO
Slot
Y board IO
Slot
Dimension
BL4501x10/100/1000M2X1x6PINX42x83x110mm
BL450A1x10/100/1000M2X1x20PINX42x83x110mm
BL450B1x10/100/1000M2X1x20PIN248x83x110mm
BL450C1x10/100/1000M2X1x10PINX42x83x110mm
BL4512x10/100/1000M2X1x6PINX42x83x110mm
BL451A2x10/100/1000M2X1x20PINX42x83x110mm
BL451B2x10/100/1000M2X1x20PIN248x83x110mm
BL4522x10/100/1000M, 1x10/100M211x6PINX42x83x110mm
BL452A2x10/100/1000M, 1x10/100M211x20PINX42x83x110mm
BL452B2x10/100/1000M, 1x10/100M211x20PIN248x83x110mm



ARMxy BL450 SOM Model List

ModelMCUClock SpeedKernelNPUeMMCLPDDR4XTemperature
SOM450RK3588J2.0GHz4 x A76 + 4 x A55 + 3 x M06TOPS32GByte4GByte-40~85°C
SOM451RK3588J2.0GHz4 x A76 + 4 x A55 + 3 x M06TOPS64GByte8GByte-40~85°C
SOM452RK3588J2.0GHz4 x A76 + 4 x A55 + 3 x M06TOPS128GByte16GByte-40~85°C
SOM453RK35882.4GHz4 x A76 + 4 x A55 + 3 x M06TOPS64GByte4GByte0~80°C
SOM454RK35882.4GHz4 x A76 + 4 x A55 + 3 x M06TOPS64GByte8GByte0~80°C



X Series I/O Board Model List
You can choose the right X-series I/O board according to your needs, and the number of pins of the X-series I/O board should be adapted to the shell.

ModelRS232/485CANDIDOGPIOPIN
102xxxx6PIN
11x2xxx6PIN
1211xxx6PIN
13xx22x6PIN
14xx4xx6PIN
15xxx4x6PIN
16xxxx46PIN
204xxxx10PIN
2131xxx10PIN
2222xxx10PIN
234x44x20PIN
243144x20PIN
252244x20PIN
262x84x20PIN
271184x20PIN
282x12xx20PIN
291112xx20PIN
30xxxx1620PIN



Y Series I/O Board Model List
Depending on your needs, you can choose the right Y-series I/O board, and the Y-series I/O modules are suitable for all Y-slots.

ModelDescription ModelDescription
Y014DI+4DO, NPNY434AO, 0~5/10V
Y024DI+4DO, PNPY464AO, ±5V/±10V
Y118DI, NPNY512RTD, 3-Wire PT100
Y128DI, PNPY522RTD, 3-Wire PT100
Y138DI, Dry ContactY532RTD, 4-Wire PT100
Y218DO, PNPY542RTD, 4-Wire PT100
Y228DO, NPNY56Resistance measurement
Y244DO, RelayY57Voltage measurement
Y314AI, single-ended, 0/4~20mAY584TC
Y334AI, single-ended, 0~5/10VY634RS485 or RS232
Y344AI, differential, 0~5/10VY954 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), NPN
Y364AI, differential, ±5V/±10V
Y374 IEP MeasurementY964 PWM Output + 4 Pulse Counter (1 High-Speed, 3 Low-Speed), PNP
Y414AO, 0/4~20mA



Note: When Y63:4-channel RS485 is selected, the second Y-board
will fail and can only be supplemented with an empty board.
