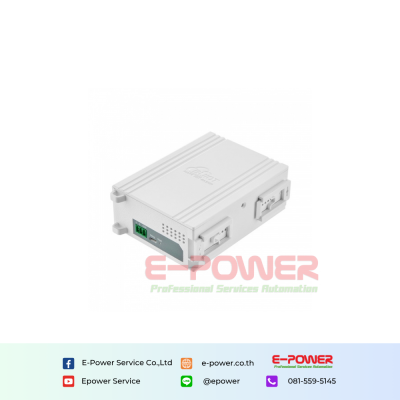

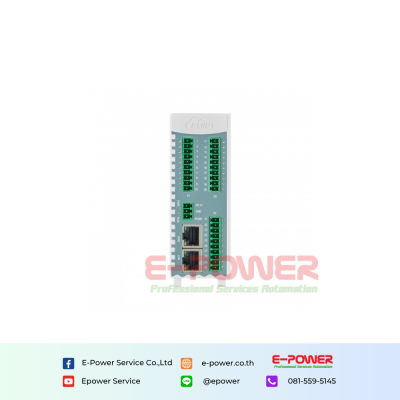

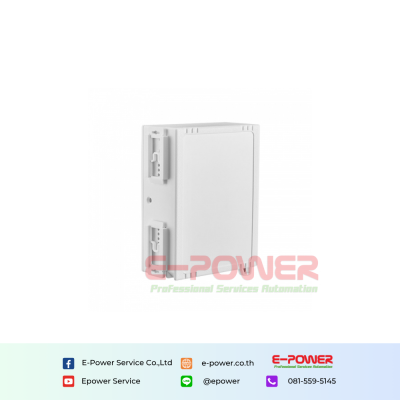

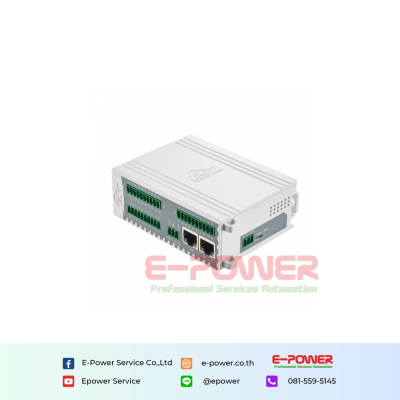

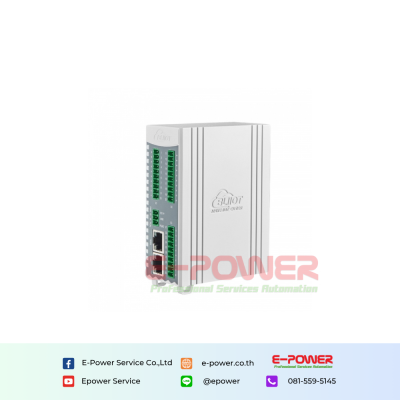

BL193 IOy Series SNMP Edge I/O Module

IOy Series SNMP Edge I/O Module Item No.: BL193 IOy Series Multifunctional Programmable SNMP Remote IO Module

Introduction
Features
Applications
IOy = PLC + I/O + Protocol Gateway
In the era of rapid development in industrial automation and the Industrial Internet of Things (IIoT), BEILAI Technologys IOy series multifunction programmable remote I/O modules stand out with their modular design, high-precision data acquisition, and powerful edge computing capabilities. Compared to traditional solutions combining PLC + I/O + protocol gateway + serial server, they reduce costs by up to 80%, making them an ideal choice for industrial field data acquisition, control, and Industry 4.0 applications. Whether for smart manufacturing, energy management, environmental monitoring, or equipment operation and maintenance, the IOy series delivers stable, efficient, and scalable solutions.

Flexible Combinations, Endless Possibilities

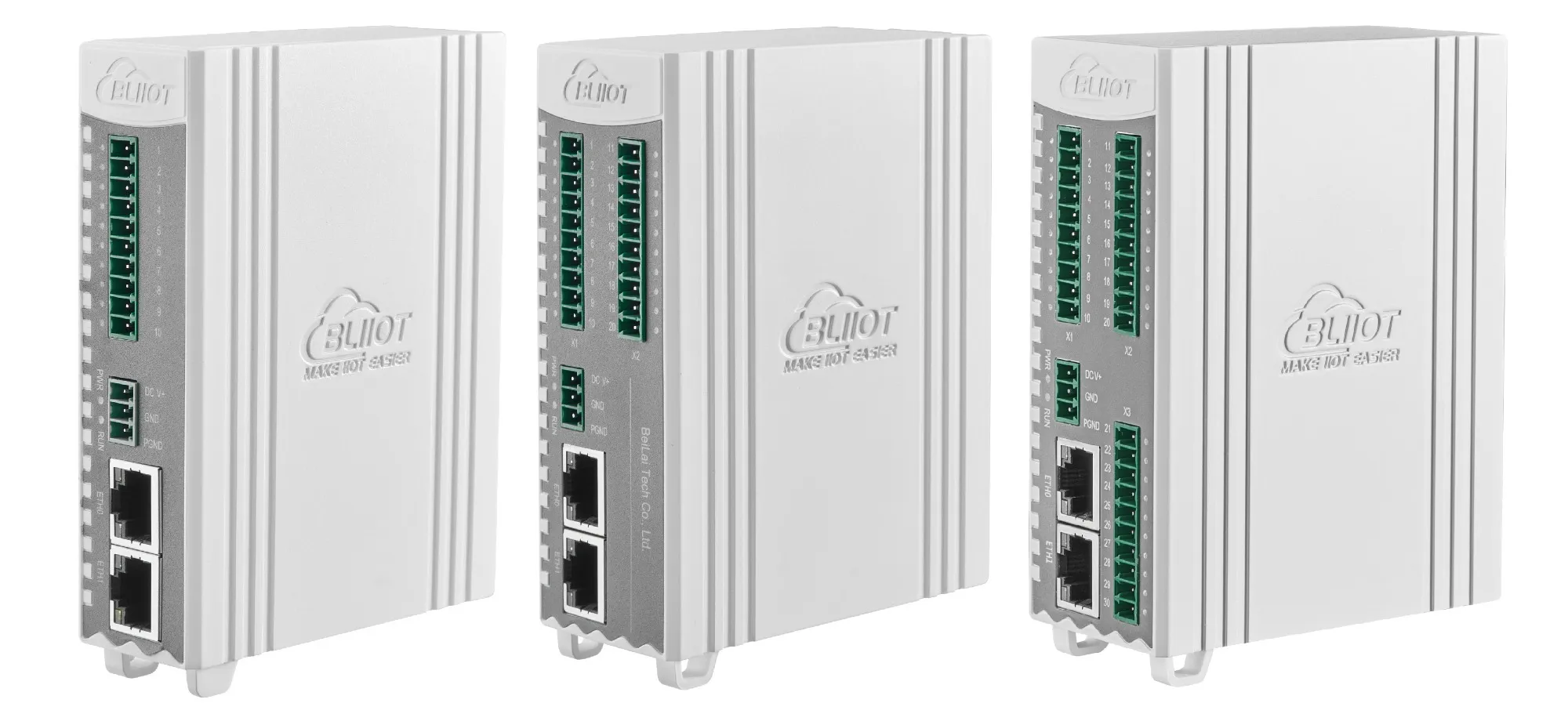

The IOy series adopts a modular, freely assembled design, supporting any combination of 1-3 Y-series I/O boards to meet the diverse demands of various industrial applications:
  • High cost-performance up to 80% lower cost than traditional solutions combining PLC + I/O + protocol gateway + serial server
  • 8DI + 4AI + 2PT mixed configuration simultaneously collects digital signals, analog values, and RTD temperature readings
  • 24-channel DI/DO configuration ideal for large-scale digital signal control
  • PWM + DI counter combination perfectly suited for motion control applications
  • DI + DO + AI + AO + RS485 combination a comprehensive solution for instrument data acquisition, serial device integration, and automatic control
From smart manufacturing and building automation to energy and power automation, a single modular setup covers 90% of industrial signal types!

Smart Edge, Beyond Data Acquisition
  • Data acquisition and protocol conversion Collects data from smart meters via RS485, performs protocol conversion and logic operations locally, eliminating the need for a separate protocol gateway
  • Logic operations, arithmetic operations, and conditional triggers Enables local IF-THEN control logic without a PLC for on-site automation
  • Multi-protocol support: Modbus RTU/TCP, MQTT, OPC UA Seamlessly integrates with PLC, SCADA, MES, and cloud platform systems
  • Multi-protocol support: Modbus RTU, BACnet, IEC104, SNMP Seamlessly interfaces with building HVAC systems, power, and energy automation systems
  • Edge computing capability Executes real-time control processing at the device edge, reducing cloud server load
  • Typical Application: In smart production lines, quality judgments are completed directly at the edge, improving response speed by 300%


Simplified O&M, Seamless Connectivity
  • Dual Ethernet port switch function Supports daisy-chain topology wiring, reducing the need for additional network switches
  • Web-based visual configuration Quick 10-minute deployment with support for remote firmware upgrades
  • BLRAT remote maintenance Enables real-time remote device status monitoring, configuration adjustments, and firmware updates, achieving zero-delay fault handling.


Industrial-Grade Performance, Stable and Reliable
  • Harsh environment adaptability: Wide operating temperature range of -40 to +85, certified by CE/FCC
  • Dual safety protection: 2KVrms electrical isolation and independent hardware watchdog for enhanced reliability
  • Military-grade EMC design: Easily withstands factory electromagnetic interference environments


Ordering Guides
Users can select 1-3 Y series IO boards according to their needs, such as BL193 with 3 Y11 (8DI) can be composed of 24DI SNMP IO module, and also supports mix and match such as BL193 with Y11 (8DI), Y31 (4AI), Y52 (2PT) can be combined into 8DI + 4AI + 2PT SNMP IO Module.

Naming Rules
IOy-Y
IOy-Y-Y
IOy-Y-Y-Y

Example

BL193-Y11SNMP Protocol 8DI I/O Module
BL193-Y11-Y11SNMP Protocol 16DI I/O Module
BL193-Y11-Y11-Y11SNMP Protocol 24DI I/O Module
BL193-Y11-Y21-Y31SNMP Protocol 8DI+8DO+4AI I/O Module



Optional Protocols

BL190Modbus TCP
BL191OPC UA
BL192MQTT
BL192ProModbus TCP, OPC UA, MQTT
BL193SNMP
BA190BACnet/IP
BA190ProBACnet/IP, MQTT, Modbus TCP, OPC UA
BE190IEC104
BE190ProIEC104, MQTT, Modbus TCP, OPC UA



Optional I/O Boards

IO Item no.FunctionDescription
Y118DI NPNNPN(Low-Level Triggering)
Y128DI PNPPNP(High-Level Triggering)
Y138DIDry Contact
Y218DO PNPHigh-level output is active, output 24V DC
Y228DO NPNLow-level output is active, output 0V DC
Y244DO RelayMax voltage: 250VAC/30VDC; Max current: 2A
Y014DI+4DO NPNDI wet or dry contact, DO NPN
Y024DI+4DO PNPDI wet or dry contact, DO PNP
Y314AI 0/4-20mA 0~20mA, 4~20mA analog input, resolution: 16 Bit
Y334AI 0-5/10V Single-Ended0~5V, 0~10V analog input, resolution: 16 Bit
Y344AI 0-5/10V Differential0~5V, 0~10V analog input, resolution: 16 Bit
Y364AI ±5V/±10V Differential-5~5V, -10~10V analog input, resolution: 16 Bit
Y374CH IEPE MeasurementLow-Impedance Voltage Signal Output
Y414AO 0/4-20mA0~20mA, 4~20mA analog output, resolution: 12 Bit
Y434AO 0-5/10V0~5V, 0~10V analog output, resolution: 12 Bit
Y464AO ±5V/±10V-5~5V, -10~10V analog output, resolution: 12 Bit
Y512RTD 3-Wire PT1003-wire PT100
Y522RTD 3-Wire PT10003-wire PT1000
Y532RTD 4-Wire PT1004-wire PT100
Y542RTD 4-Wire PT10004-wire PT1000
Y584TCB/E/J/K/N/R/S/T Thermocouple
Y958Pulse Output and Pulse Counting4CH Pulse Output + 4CH Pulse Counting (NPN)
Y968Pulse Output and Pulse Counting4CH Pulse Output + 4CH Pulse Counting (PNP)
Y614RS485/RS2324*RS485/RS232 optional
Y621CAN+3RS485/RS2321*CAN+3*RS485/RS232 reserve
