M120 Modbus Remote I/O

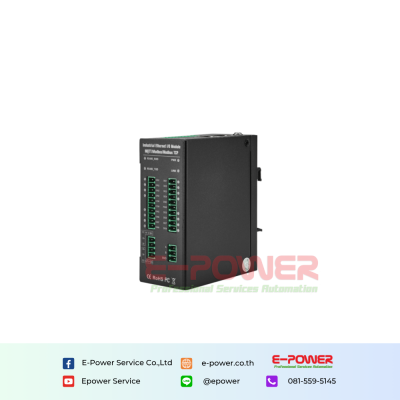

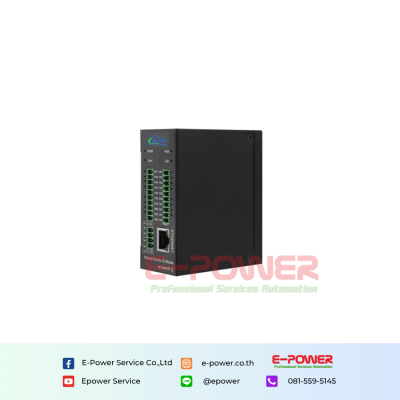

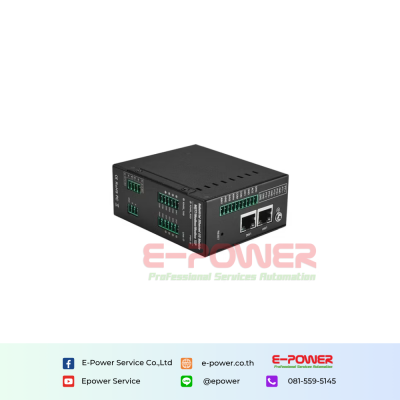

4DIN+4AIN+2AO+4DO Ethernet Remote IO Module Item No.: M120 M120 Ethernet Remote I/O Module provides 4 optical-isolated digital inputs, supports Max. 700KMHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V, 0~10V, 4~20mA, 0~20mA analog signal, 2 channel 0-10V 12bits analog outputs.

Introduction
Specifications

Modbus Remote I/O

There are many industrial automation devices such as PLC which have a MODBUS Communications facility available. PLC can be configured as a MODBUS Master, and IO modules are attached to the RS485 configured as RTU slaves. PLC system use M120 Modbus RTU IO Module to increasing the I/O capability of the industrial control system. The Modbus remote IO M120 also supports Modbus TCP server and client, SNMP V1/V2, and MQTT protocol. Which is suitable for wide range of industrial data acquisition and remote monitoring applications.

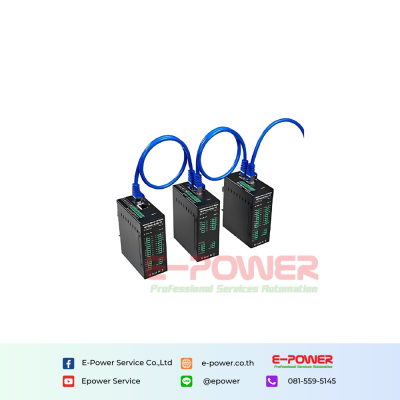

The M120 Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

4DI

4DO

4AI

2AO

Wet/Dry contactSINK0-20mA/4-20mA0-10V
High speed pulseHigh speed pulse0-5V
countingoutput0-10V
