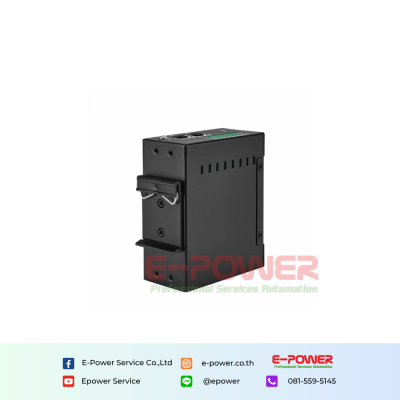

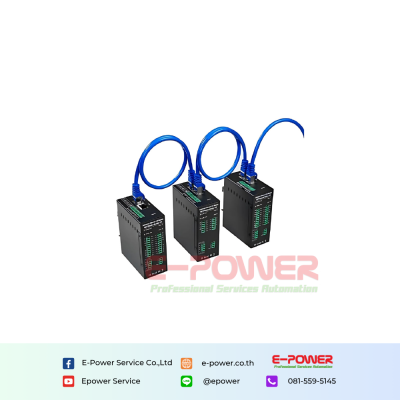

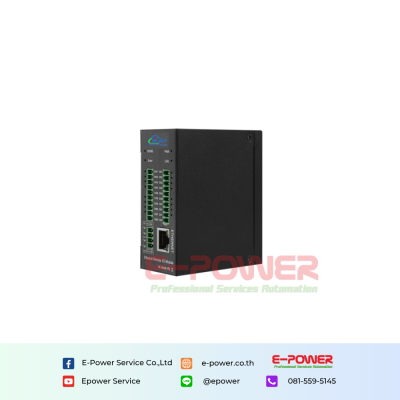

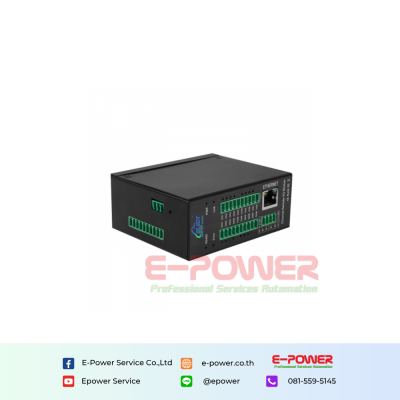

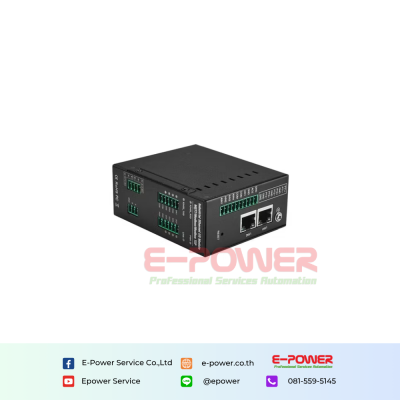

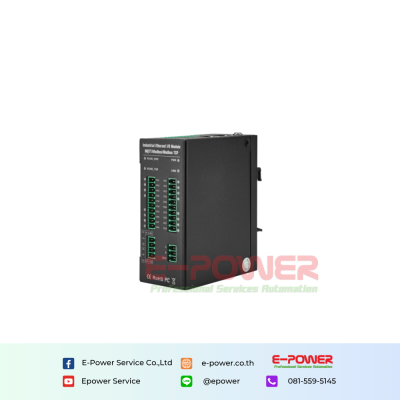

M110 Digital Input/Output Modules

4DI+4DO Remote IO Module Item No.: M110 M110 Industrial Remote I/O Module provides 4 optical-isolated digital inputs, supports Max. 700KHz high speed pulse counter, 4 digital outputs, supports 10Hz~300Khz high speed pulse output or relay outputs.

Categories : BLIIOT , Automation , Rugged Ethernet I/O

Brands :BLIIOT

Introduction

Specifications

Digital Input/Output Modules

The BLIIoT's wide range of digital I/O modules guarantees the right module for diverse applications.
The input/output module M110 is used for controlling digital consumer like contactors, relays, pneumatic and hydraulic valves, as well as for reading digital signals of sensors or detectors.
The Digital I/O M110 comes with 4 digital inputs, 4 digital outputs, and Modbus I/O, Ethernet port.

4DI	4DO	Protocol	Interface
Wet/Dry contact	SINK	MQTT	Ethernet port
High speed pulse	High speed pulse	SNMP V1/V2	RS-485 Serial port

counting	output	Modbus RTU/Modbus TCP
