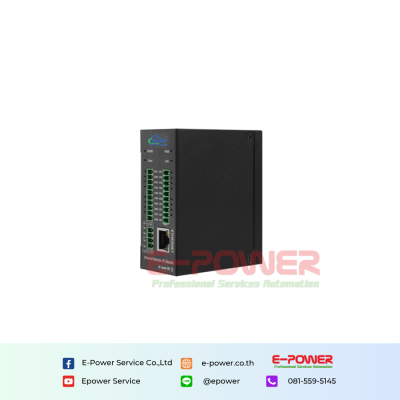

M170T Modbus TCP Ethernet Remote I/O Module

8DI+4AI(16bits)+4DO Remote I/O M170T (MQTT, Modbus) Item No.: M170T This Modbus TCP Ethernet remote I/O module offers a powerful combination of 8CH Digital input(DI), 8CH Digital output(DO), and 4CH Analog input(AI) for an excellent functionality/price ratio.

Categories : BLIIOT , Automation , Rugged Ethernet I/O

Brands :BLIIOT

Introduction

Specifications

Modbus TCP Ethernet Remote I/O Module

This Modbus TCP Ethernet remote I/O module offers a powerful combination of 8CH Digital input(DI), 8CH Digital output(DO), and 4CH Analog input(AI) for an excellent functionality/price ratio. The Analog input measurement resolution of this Modbus TCP remote I/O is 16bit, 4CH AI for measuring voltage or current. Digital input supports wet contact or dry contact, Digital output supports SINK. This Modbus I/O module is used for power consumption remote monitoring.

8DI	4AI	4DO	Protocol
Wet/Dry contact	0-20mA/4-20mA	SINK	SNMP V1/V2
High speed pulse	0-5V/0-10V	High speed pulse	Modbus RTU/Modbus TCP
counting	16bit resolution	output	MQTT
