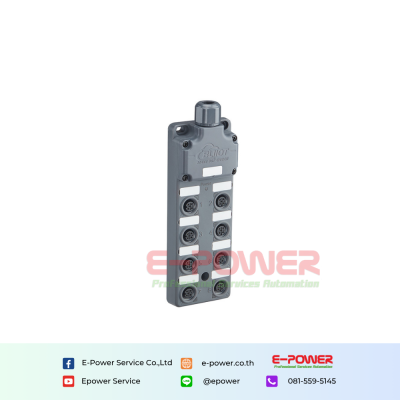

DBT-M12-8P-1S Terminal Block Sensor Distributor

8 Port M12 1CH Terminal Block Sensor Distributor Item No.: DBT-M12-8P-1S BLIIOT DBT series 8 Port M12 one channel distribution box is used to gather NPN or PNP sensor signals from different devices in the field, integrating them into a multicore cable for connection from the sensor to the controller.

Categories : BLIIOT , Automation , Sensor Distributor

Brands :BLIIOT

Introduction

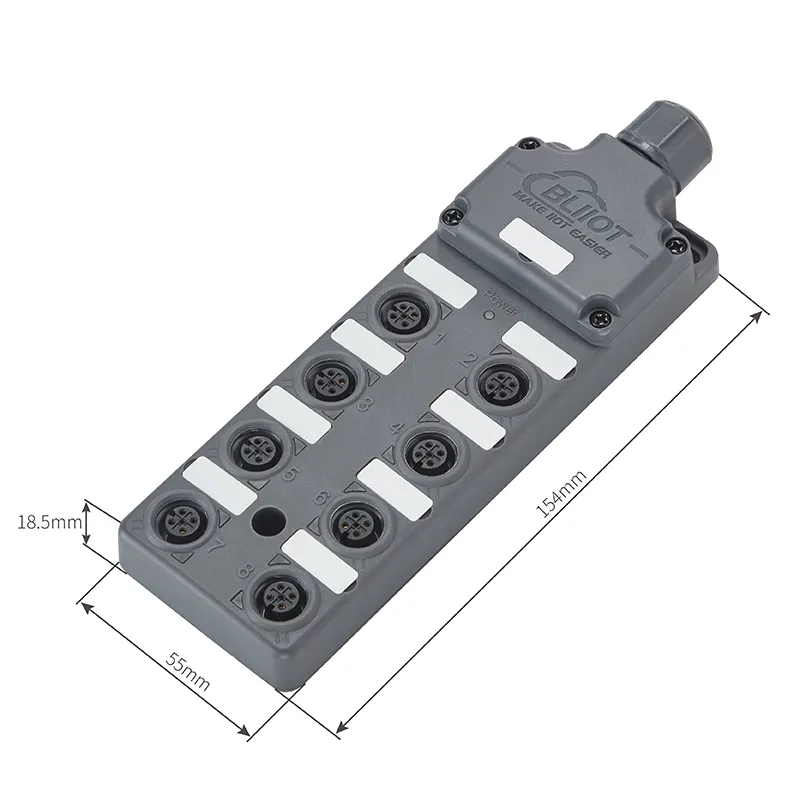

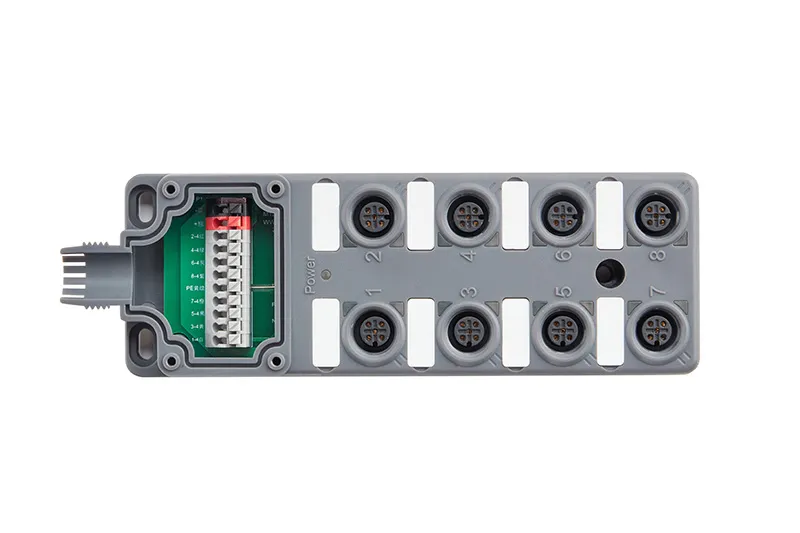

BLIIOT DBT series 8 port M12 one channel distribution box features an industrial-grade design with built-in tool-free terminal blocks for convenient on-site wiring. The corrosion-resistant shell is made from materials that withstand acid and alkali, achieving an IP65 protection rating. It is used to gather NPN or PNP sensor signals from different devices in the field, integrating them into a multicore cable for connection from the sensor to the controller.
The DBT series distribution box features a compact size, offering flexible installation and simple, stable, and reliable wiring. It is suitable for a wide range of industrial automation equipment including logistics equipment, food processing equipment, pharmaceutical equipment, and more.

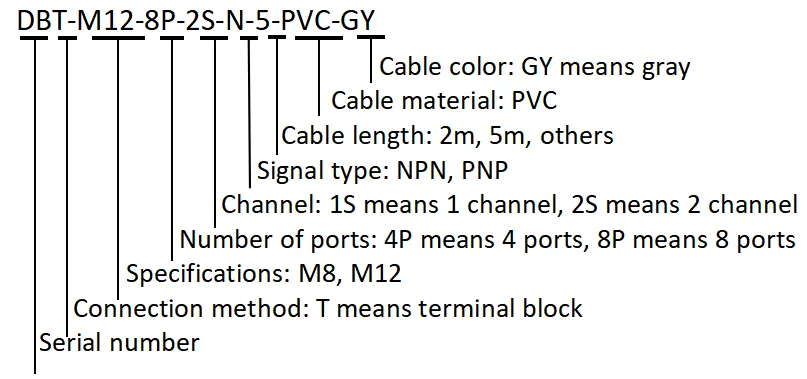

DBW series distribution box naming convention

Ordering model number for the DBW series distribution box

Model Number	2m cable-8CH PNP	DBT-M12-8P-1S-P-2-PVC-GY
	5m cable-8CH PNP	DBT-M12-8P-1S-P-5-PVC-GY
	2m cable-8CH NPN	DBT-M12-8P-1S-N-2-PVC-GY
	5m cable-8CH NPN	DBT-M12-8P-1S-N-5-PVC-GY
	2m cable-4CH PNP	DBT-M12-4P-2S-P-2-PVC-GY
	5m cable-4CH PNP	DBT-M12-4P-2S-P-5-PVC-GY
	2m cable-4CH NPN	DBT-M12-4P-2S-N-2-PVC-GY
	5m cable-4CH NPN	DBT-M12-4P-2S-N-5-PVC-GY
