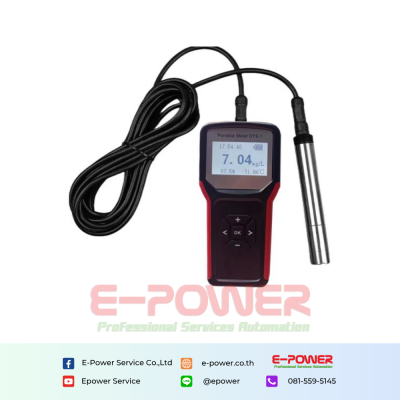

HANDHELD PORTABLE DISSOLVED OXYGEN METER

DYS-1 Portable Dissolved Oxygen Meter Automatically identifies the type of sensor. Simple and easy to use, connect the sensor to start the measurement and can be used for sensor measurement and calibration.

Categories : DS Sensor , Portable Meter

Brands :Desun Uniwill

Product description

FEATURES OF HANDHELD PORTABLE DISSOLVED OXYGEN METER:

The DYS-1 DO meter has a large LCD (liquid crystal display) display for a clear reading.
RS-485 signal output.
Low power consumption, high reliability, intelligent metering.
Have reliable and easy operation (one-handed operation).
It supports manual salinity compensation and air pressure compensation.
Manual/automatic calibration.
Displays the DO temperature.
Suitcase packing, easy to carry.
Testing anytime, anywhere.

APPLICATIONS:

It can be widely used in freshwater aquaculture and marine aquaculture.

TECHNICAL PARAMETERS AND DIMENSIONS:

Model	DYS-1
MAKE Precision	1%
OD Range	0~20mg/L or 0~200%
Dissolved oxygen sensor drift	<1% per year
Material supplied	3V~6V
Measuring distance	3m~5m
Strength	<0.5W
Sensor Cleaning Cycle	Depending on the water condition and the frequency of measurement
Sensor material	Stainless steel/titanium
Signal output	RS485
Temperature. Accuracy	±0.2°C
Temperature. Rank	0~50°C
Working temperature	-20°C~50°C
