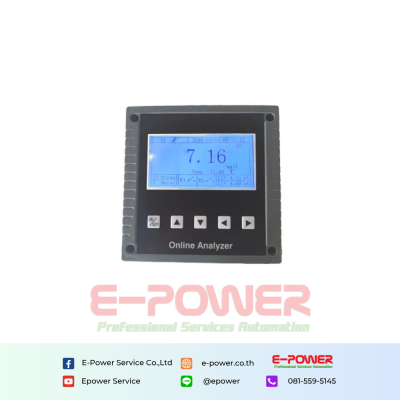

Industrial Online Controller / Single Parameter Analyzer
Industrial online controller / Single Parameter Analyzer overview:
This industrial online controller/ Single Parameter Analyzer is a new intelligent controller with high intelligence and flexibility, Identifying all our sensors, and is widely used in aquaculture, municipal sewage treatment plants, electric power, water supply, pharmaceutical, chemical, food, and other industries.
Industrial online controller / Single Parameter Analyzer Features:
1, Large screen display interface, eye-catching and convenient.
2, With digital communication function, can be connected to the upper computer, communication using isolation technology, strong anti-interference ability.
3, With the relay alarm setting function, the hysteresis amount can be freely adjusted to avoid frequent relays on and off.
4, Menu prompt function, convenient for users to operate.
5, With a 4-20mA current output function, convenient for the control center for data acquisition.
6, Setting interface with password protection to prevent misuse.
7, Automatic recognition of all Desun sensors.
Technical parameters:
| Item | Parameters |
|---|---|
| Controller size | 144*144*115mm |
| Weight 0.65kg | 0.65kg |
| Operating temperature | 0~ 55 °C, avoid direct sunlight |
| Storage temperature -40 ~ 85 °C | -40 ~ 85 °C |
| Temperature range | 0~ 50°C |
| Display | 95.5*48.5 LCD |
| Protection level | ABS housing, IP65 |
| Environment humidity | 80% |
| Power supply | 220VAC or 24VDC(Optional) |
| Transmitting output signal | 4~20mA/ RS485 |
| Alarms | Two relay high/low alarm |
| Installation method | Wall or panel mounting |
