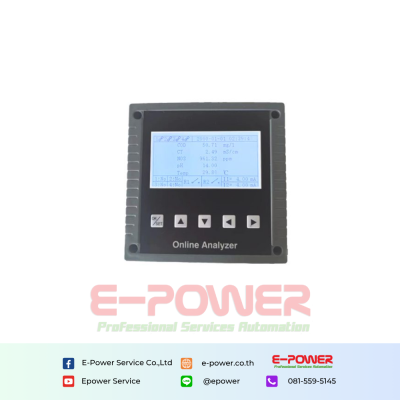

Online Display Analyzer/ Controller/ Transmitter for 4 Parameters
Online display Analyzer/ Controller/ Transmitter for 4 Parameters overview:
This Online display Analyzer/ Controller/ Transmitter for 4 Parameters is a new intelligent controller with high intelligence and flexibility, identifying all our sensors, and is widely used in aquaculture, municipal sewage treatment plants, electric power, water supply, pharmaceutical, chemical, food, and other industries.
Online display Analyzer/ Controller/ Transmitter for 4 Parameters Features:
1. Large screen display interface, eye-catching and convenient.
2. It has a digital communication function, can be connected to the upper computer, communicates using isolation technology, and has strong anti-interference ability.
3. With the relay alarm setting function, the hysteresis amount can be freely adjusted to avoid frequent relays on and off.
4. The menu prompt function is convenient for users to operate.
5, With a 4- 20mA current output function, convenient for the control center for data acquisition.
6. Setting the interface with password protection to prevent misuse.
7. Automatic recognition of all Desun sensors.
Technical parameters:
| Item | Parameters |
|---|---|
| Controller size | 144*144*115mm |
| Weight 0.65kg | 0.65kg |
| Operating temperature | 0~ 55 °C, avoid direct sunlight |
| Storage temperature -40 ~ 85 °C | -40 ~ 85 °C |
| Temperature range | 0~ 50°C |
| Display | 95.5*48.5 LCD |
| Protection level | ABS housing, IP65 |
| Environment humidity | 80% |
| Power supply | 220VAC or 24VDC(Optional) |
| Transmitting output signal | 4~20mA/ RS485 |
| Alarms | Two relay high/low alarm |
| Installation method | Wall or panel mounting |
