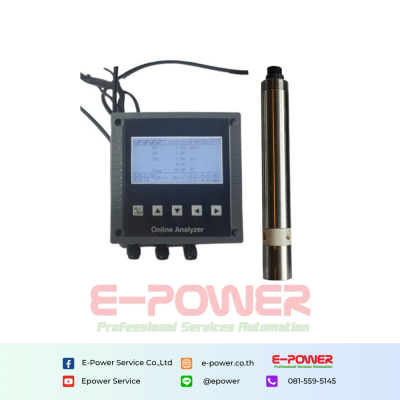

DS280 Water Salinity Sensor Digital Salinity Probe

Categories : DS Sensor , Water Quality Sensor

Product description

Overview:

DS280 Water Salinity Sensor Digital Salinity Probe adopts a new generation of four-electrode technology, with a wide measurement range and automatic range switching. Automatic temperature compensation for the changing temperature of the water body. With strong anti-interference ability, the electrode can adapt to a variety of harsh water environments, the electrode will not be polarized for a long time, reducing maintenance costs.

Features of DS280 Salinity Sensor:

Small in size, it can be assembled in many ways.
Wide measurement range, automatic switching of measurement ranges.
Built-in temperature sensor, automatic temperature compensation.
Salinity sensors use polarization-free, four/six electrode technology.

Technical parameter of DS280 Salinity Probe:

Product name	DS280 Salinity Sensor
Detection principle	Electrode method
Response time	<2 sec
Measurement range	0~60 ppt
Measurement accuracy	3~5%
Resolution	1uS/cm
Temperature range	0~ 50°C
Storage temperature	-20~ 80°C
Output signal	RS-485, MODBUS protocol
Calibration method	1 or 2 point calibration

Specifications:

Waterproof level	IP68
Under pressure	1bar
Product material	SS316+PEEK
Product Size	Φ22 X 152.5mm
Power information	DC 6~12V, current <50mA
Cable length	Standard 5 meters, longer can be customized
