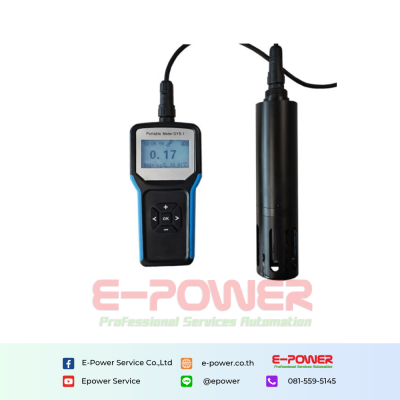

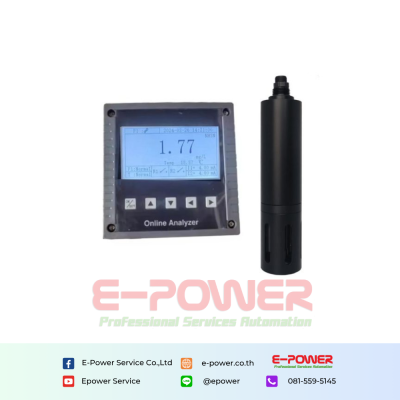

DSN260 Online Ammonia Nitrogen Sensor and Portable Ammonia Meter for Water

Online ammonia nitrogen sensor integrated ammonium ion, potassium ion (optional), pH and reference electrode, automatically compensate for potassium ion (optional), pH and temperature in water.

Categories : DS Sensor , Water Quality Sensor

Brands :Desun Uniwill

Product description

Overview:

DSN260 Ammonia Nitrogen Sensor integrated ammonium ion, potassium ion (optional), pH, and reference electrode, automatically compensate for potassium ion (optional), pH and temperature in water.

Installation Method of Ammonia Nitrogen Sensor:

Direct input installation, compared to traditional ammonia nitrogen analyzers, requires no reagents, is more economical and environmentally friendly, and the electrodes can be replaced separately.

Features:

The Sensor adopts the ion electrode method without electrolyte.
No reagents are required, no secondary pollution.
Can output parameters such as pH temperature.
Electrodes can be replaced individually for easy maintenance.

Technical parameter:

Product	Ammonia nitrogen sensor
Detection principle	ion selective electrode method
Measurement range	Ammonia nitrogen: 0~1000mg/L NH4-N PH: 0-14ph
Measurement accuracy	Ammonia nitrogen: 3% PH: ±0.1
Resolution	Ammonia nitrogen: 0.1mg/L PH: 0.01
Temperature Range	0-50°C
Storage temperature	-2~80°C
Output signal	RS-485 output MODBUS protocol

Specifications

Waterproof level	IP68
Under pressure	1bar
Product material	POM
Product Size	Φ48 X 209mm
Power information	DC 6~12V, current <50mA
Cable length	Standard 5 meters, longer can be customized

Applications of DSN260 Online Ammonia Nitrogen Sensor

Ammonia nitrogen sensors monitor and measure ammonia (NH) and ammonium (NH) levels in various environments, particularly water and air. They have numerous applications across different industries and scientific fields.

1. Water Quality Monitoring
Wastewater Treatment Plants: help monitor ammonia levels to ensure efficient nitrogen removal processes such as nitrification and denitrification.
Aquaculture & Fisheries: Ensures a healthy aquatic environment by monitoring ammonia levels, which can be toxic to fish and other marine organisms.
Drinking Water Systems: Ensures safe water quality by detecting ammonia contamination, which can indicate pollution or inefficient treatment.
Surface Water & Groundwater Monitoring: Used in lakes, rivers, and reservoirs to assess pollution from agricultural runoff, industrial discharge, and sewage leaks.

2. Industrial Applications
Chemical & Fertilizer Manufacturing: Helps regulate ammonia emissions and detect leaks in industrial processes.
Power Plants: Used in cooling systems and wastewater management to control ammonia pollution.

3. Smart & IoT-Based Monitoring
Smart Cities & IoT Applications: Integrated into smart sensors and remote monitoring systems for real-time ammonia detection in water and air.
Remote Sensing & Autonomous Systems: Used in unmanned aerial vehicles (UAVs) and underwater robots for environmental monitoring.
Ammonia nitrogen sensors play a crucial role in environmental protection, industrial applications, and scientific research. Their ability to provide real-time monitoring helps in maintaining water quality, reducing pollution, and ensuring compliance with environmental regulations.
