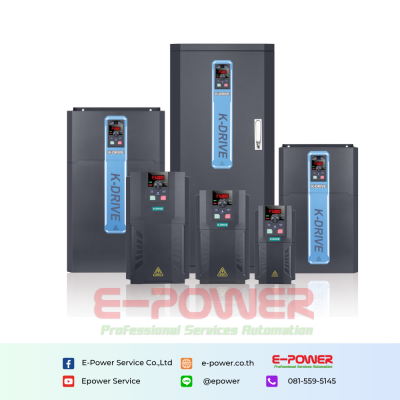

KD600 Series General Pupose Series

Product Features

01. Optional STO （Safe Torque Off）function;

02. IGBT module for all models;

03. Redundant design of hardware solution ensures long-term stable operation;

04. The whole series is equipped with a metal backboard as standard, which provides stronger protection than the plastic backboard;

05. Extra large silicone buttons facilitate customer operation;

06. The whole series is equipped with a metal backboard as standard, which provides stronger protection than the plastic backboard;

07. Support LCD keypad, multi-language menu (optional);

08. Detachable keyboard, external keyboard, convenient for customer debugging;

09. PC software, one-key setting,keypad parameter copy, saving customer debugging time;

10. Built-in EMC C3 filter, stronger anti-electromagnetic interference ability;

11. Independent air duct design prevents dust from contacting the circuit board, better heat dissipation performance;

12. Installation back mounting system can insert the inverter directly into the rack;

13. Programmable DI/DO/AI/AO;

14. MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG, I/O expansion card;

15. Integrated PID function support most of water supply applications;

16. Integrated multi-speed function support maximum 16 speeds;

17. Support fire override mode;

Technical Details

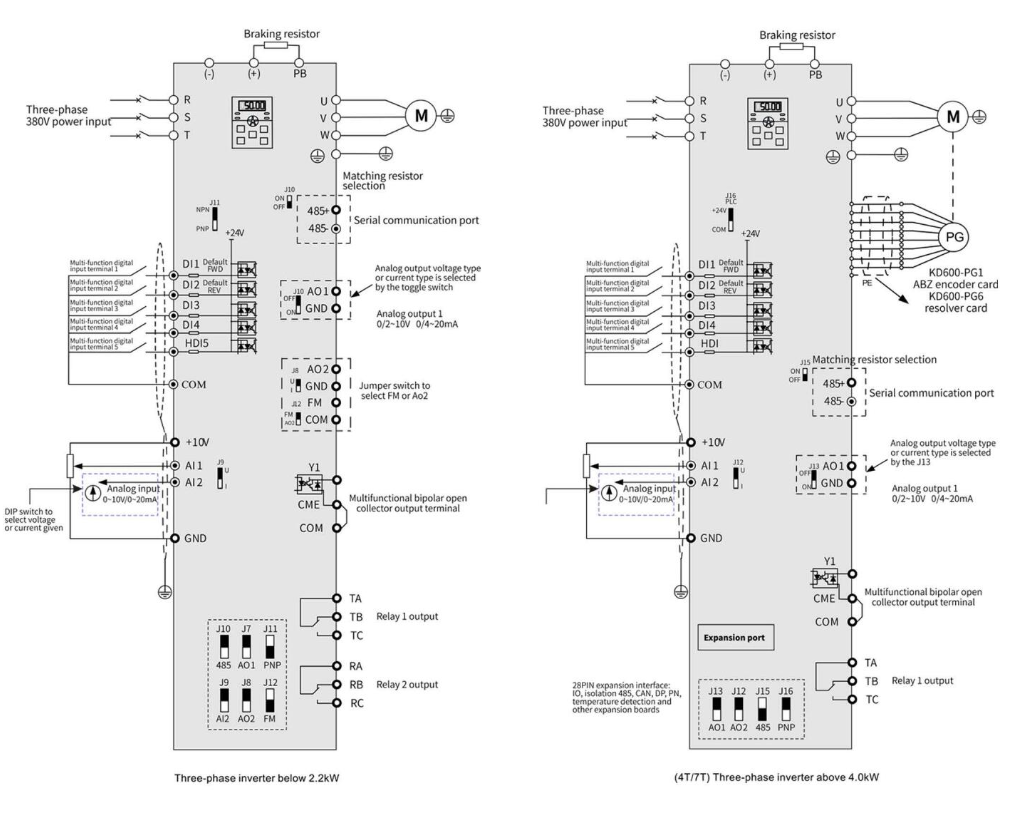

Basic Wiring Diagram

Model Dimension
