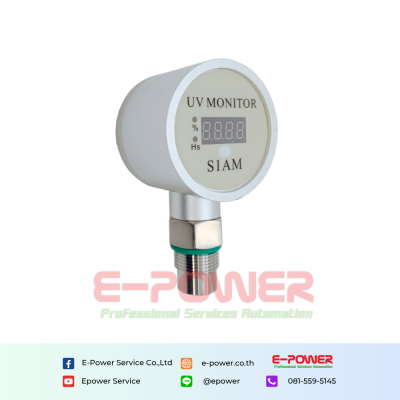

CHS1AM -Compact UV Intensity Meter with Integrated UV Intensity Sensor

Real-time online monitoring of ultraviolet relative intensity %, and accumulative time respectively. Interfaces G 1/2”, G 3/4”, G 1/4”, OR Sanitary Tri-Clamp, allowing seamless integration with the customer’s UV water treatment system. Power Supply: Available in 24VDC, 12VDC, and 5VDC. Designed with a simple two-wire connection for effortless installation, even for beginners.

Categories : ApoSun , UV Meter

Brands :ApoSun

Product description

Overview

The CHS1AM Compact UV Intensity Meter with Integrated UV Intensity Sensor is an advanced online ultraviolet fail-safe monitor, specifically designed for UV disinfection lamps and UV water treatment systems.

Your Ideal Partner for UV Water Treatment Applications.

Combining precision and reliability, the CHS1AM ensures optimal UV performance in critical applications.

Main Features

Advanced MCU for stable & reliable UV monitoring
Available Interfaces: G 1/2, G 3/4, G 1/4, or Sanitary Tri-Clamp
4 Digits LED display
Accumulated timing for UV lamp running time
UV irradiance low alarm
UV lamp running time Max alarm
Easy operation & installation

UVC Intensity Measurement System

Best Partner For UV Water Treatment System
UV Lamp Hour Management
UV Intensity Management

Specifications

Model	CH51AM
Response Spectrum	210-280nm(UVC)
Peak Response Spectrum	253.7nm
Output Signal	None(Only display UV lamp running time Max alarm 8000hrs and UV intensity Low alarm 50%)
Power Supply	(5vDC, 12v DC, 24v DC)
Power Consumption	<2w
Mode of Connection	2 wire
Measuring Range	0-20mw/cm2 or other ranges can be customized
Operating Temperature	-10-60 °C
Storage Temperature	-10-70 °C
Shell Material	Aluminum
Interface Material	SUS316L
Screw Specification	(G 1/2",G 1/4",G 3/4",NPT 1/2",NPT 1/4",NPT 3/4",Sanitary Tri-Clamp)
Cable Model	2.5 meter
