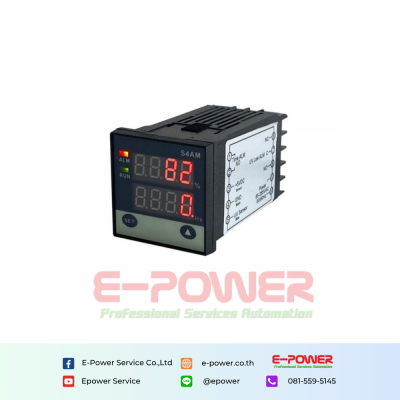

CHS4AM - UV Light Intensity Meter With Detector (Ultra Violet system)

On-Line/Real-time Ultraviolet Monitor Real-time online monitoring of ultraviolet relative intensity, irradiances (mW/ cm²), and accumulative time respectively. Easy operation, simple identification, precision reading, and control.

Categories : ApoSun , UV Meter

Brands :ApoSun

Product description

Download

Overview

CHS4AM UV C light intensity meter is an on-line ultra violet fail-safe monitor, especially for UV disinfection lamp, ultraviolet light accelerated aging test machine, water treatment, UV air purifier, air sanitizer, ultra-pure water system etc.

The best partner for UV devices on various occasions & applications:

UV curing and aging
Air sterilization
Sewage treatment, Water disinfection
Semiconductor fabrication
Offset printing
Environmental monitoring
Other industrial process control

Main Features

Advanced MCU for controlling, stable & reliable
Standard panel 1/16, 1/8 din: 48×48mm 48×96mm
LED display
Accumulated timing for UV lamp running-time
UV irradiance low alarm
Easy operation & installation
Used in curing, aging, air sterilization, sewage treatment, water treatment, ozone detection, arc monitoring, ultra-pure water system and other industries

UVC Intensity Measurement System

Best Partner for Air Water Purification
UV Lamp Hour Management

Model Comparison Table

Model	LED display	Display parameters			Alarm			Dimension
		Intensity relative value	Intensity absolute value	Running time	For UV relative value	For UV absolute value	For running time	Frame	Holing
CH54AM	4 digits LED	✓	✗	✓	✓	✗	✓	48×48×85mm	45×45mm
CH54DM	4 digits LED	✗	✓	✓	✗	✗	✓	48×48×85mm	45×45mm
CH55AM	5 digits LCD	✓	✓	✓	✓	✗	✓	48×94×110mm	45×92mm
CH59AM	5 digits LED	✓	✓	✓	✓	✗	✓	48×94×110mm	45×92mm
