Product description
Overview

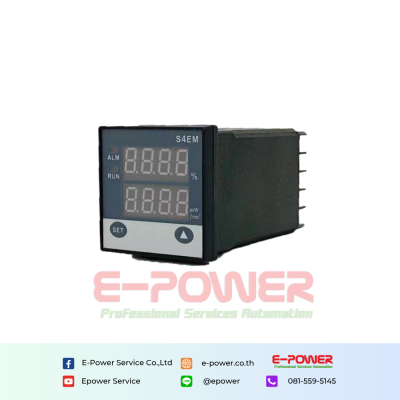

CHS4EM UV C light intensity meter is an on-line ultra violet fail-safe monitor, especially for UV disinfection lamps, ultraviolet light accelerated aging test machines, water treatment, UV air purifiers, air sanitizers, etc.
The best partner for UV devices on various occasions & applications:
- UV curing and aging
- Air sterilization
- Sewage treatment, Water disinfection
- Semiconductor fabrication
- Offset printing
- Environmental monitoring
- Other industrial process control
Main Features
- Advanced MCU for controlling, stable & reliable
- Standard panel 1/16, 1/8 din: 48×48mm 48×96mm
- LED display
- UV irradiance low alarm
- Easy operation & installation
- Used in curing, aging, air sterilization, sewage treatment, water treatment, ozone detection, arc monitoring, and other industries
UVC Intensity Monitoring System
- Best Partner for Air Water Purification
- UV Relative Intensity % and UV Absolute intensity mw/cm² Management
Specification
| Model | LED display | Display parameters | Alarm | Dimension | |||||
|---|---|---|---|---|---|---|---|---|---|
| Intensity relative value | Intensity absolute value | Running time | For UV relative value | For UV absolute value | For running time | Frame | Holing | ||
| CHS4AM | 4 digits | ✓ | × | ✓ | ✓ | × | ✓ | 48×48×85mm | 45×45mm |
| CHS4DM | 4 digits | × | ✓ | ✓ | × | × | ✓ | 48×48×85mm | 45×45mm |
| CHS4EM | 4 digits | ✓ | ✓ | × | ✓ | × | × | 48×48×85mm | 45×45mm |
| CHS9AM | 5 digits | ✓ | ✓ | ✓ | ✓ | × | ✓ | 48×94×110mm | 45×92mm |
