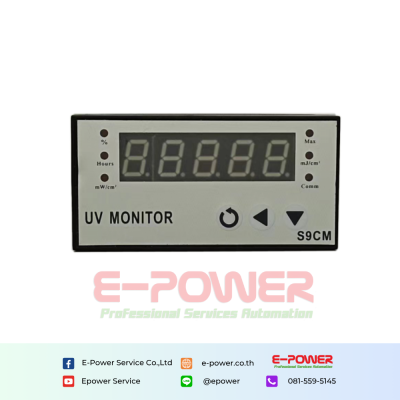

CHS9CM - UV Irradiance and Dose Meter

Choice of three separate, interchangeable sensor heads UV-A (365 nm) UV-B (312 nm) UV-C (254 nm) 2 m connecting cable UV irradiance range 0 – 250 mW/cm2 UV dose range 0 – 99,999 mJ/cm2

Product description

Overview

CHS9CM UV Irradiance and Dose Meter is an on-line ultra violet fail-safe monitor, especially for UV disinfection lamps, ultraviolet light accelerated aging test machines, water treatment, UV air purifiers, air sanitizers, ultra-pure water system etc.

The best partner for UV devices on various occasions & applications:

  • UV curing and aging
  • Air sterilization
  • Sewage treatment, Water disinfection
  • Semiconductor fabrication
  • Offset printing
  • Environmental monitoring
  • Other industrial process control

Main Features

  • Advanced MCU for controlling, stable & reliable
  • Standard panel 1/16, 1/8 din: 48×48mm  48×96mm
  • 5 units (0.56 inches )LED display
  • Automatically accumulated timing for UV lamp running-time
  • UV irradiance low alarm, lighting intensity attenuates 50% off alarming
  • Output industrial standard signals & Convenient used for embedded system
  • Max UV intensity display
  • UV Dose display (mJ/㎠)
  • RS485 Communication protocols sends signals to a PLC on lamp failure
  • Used in curing, aging, air sterilization, sewage treatment, water treatment, ozone detection, arc monitoring, ultra-pure water system and other industries

UVC Intensity Monitoring System

  • Best Partner for Air Water Purification
  • UV Lamp 0-19999 Hours Management
  • RS485 Communication Protocols
  • UV Irradiance and Dose Display (mJ/㎠)

Specification

Display Parameters Table
ModelLED
display
Display parametersAlarmRS485Dimension

 Intensity
relative
value
Intensity
absolute
value
Running
time
Max
intensity
value
Dose
value
For UV
relative
value
For UV
absolute
value
For
running
time
For
PLC
FrameHoling
CHS4AM4 digits
LED
×××××48×48×85mm45×45mm
CHS4DM4 digits
LED
××××××48×48×85mm45×45mm
CHS5AM5 digits
LCD
××××48×94×110mm45×92mm
CHS9AM5 digits
LED
××××48×94×110mm45×92mm
CHS9mm5 digits
LED
×48×94×110mm45×92mm
