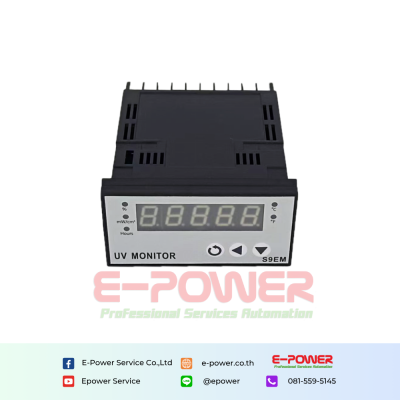

CHS9EM - UV Intensity Monitor-UV Monitor Integrates

On-Line/Real-time Ultraviolet Monitor, Temperature 0-100°C Real-time online monitoring of ultraviolet relative intensity(%), irradiances (uW/ cm²), displaying temperature values in “°C” or “°F”, and accumulative time(hours) displayed respectively. Easy operation, simple identification, precision reading, and control.

Categories : ApoSun , UV Meter

Brands :ApoSun

Product description

Overview

CHS9EM UV Intensity Monitor is an online ultraviolet fail-safe monitor, especially for UV disinfection lamps, ultraviolet light accelerated aging test machines, water treatment, UV air purifiers, air sanitizers, etc.

The best partner for UV devices on various occasions & applications:

UV curing and aging
Air sterilization
Sewage treatment, Water disinfection
Semiconductor fabrication
Offset printing
Environmental monitoring
Other industrial process control

Main Features

Advanced MCU for controlling, stable & reliable
Standard panel 1/16, 1/8 din: 48×48mm 48×96mm
5 units (0.56 inches )LED display
Automatically accumulated timing for UV lamp running time
UV irradiance low alarm, lighting intensity attenuates 50% Low alarming
Output industrial standard signals (4-20ma,1-5v) & Convenient used for embedded system
Easy operation & installation
Temperature display 0-100，±3, temperature Max alarming.
Used in curing, aging, air sterilization, sewage treatment, water treatment, ozone detection, arc monitoring, and other industries

UVC Intensity & Temperature Monitoring

UV relative intensity % and UV absolute intensity uw/cm² display
UV Lamp 0-19999 Hours Management
Temperature 0-100 management

Specification

Display Parameters Table

Model	Display	Display Parameters				Alarm				Dimension
		Intensity relative value	Intensity absolute value	Running time	Temp value	For UV relative value	For UV absolute value	For running time	For Temp value	Frame	Holing
CHS4AM	4 digits LED	✓	×	✓	×	✓	×	✓	×	48×48×85mm	45×45mm
CHS4DM	4 digits LED	×	✓	✓	×	×	×	✓	×	48×48×85mm	45×45mm
CHS5AM	5 digits LCD	✓	✓	✓	×	✓	×	✓	×	48×94×110mm	45×92mm
CHS9AM	5 digits LED	✓	✓	✓	×	✓	×	✓	×	48×94×110mm	45×92mm
CHS9EM	5 digits LED	✓	✓	✓	✓	✓	×	✓	✓	48×94×110mm	45×92mm
