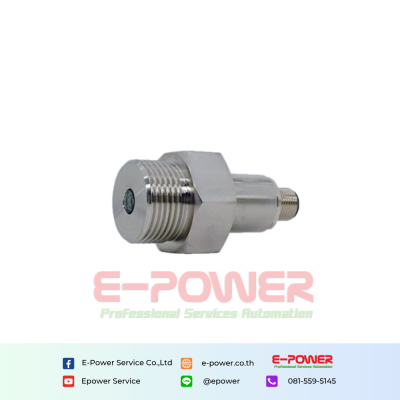

SW2.5 G 3/4” - UV Sensor for Ballast Water UV Systems

Overview

SW2.5 G3/4 UV Sensor for Ballast Water UV Systems Reliable Monitoring for Medium-Pressure UV Lamps

• Measure ultraviolet (UV) light relative/absolute UV intensity

• The low-cost, high-accuracy sensor that is ideal for Ballast Water UV Systems

• Analog output (4-20mA, 0-5V)

• An easy-to-use, superior long-time stability and corrosion resistance.

• For Hg medium-pressure UV lamps

Main Features

• The SW2.5 UV Sensor with a G3/4 thread for operation in water. It is 10 bar water pressure resistant and is typically used for monitoring Hg medium UV lamps in pressurized water. It will be configured on individual requirements which are clarified within the order process. Configurable parameters are the signal output type, the measurement range, and the spectral responsivity. The signal output is configurable as a 05V voltage output or 420mA current loop or photodiode output.

General Specification
