SW5 G3/4” - Ultraviolet Light UV-C Sensor

Overview

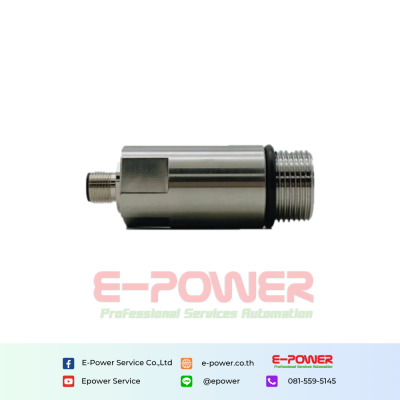

SW5 G3/4 Ultraviolet Light UV-C Sensor For Medium-Pressure UV Lamps

• Measure ultraviolet (UV) light relative/absolute UV intensity

• The low-cost, high-accuracy sensor that is ideal for ballast water UV sterilizers

• Analog output (4-20mA, 0-5V)

• An easy-to-use, superior long-time stability and corrosion resistance.

• For Hg medium UV lights

Main Features

• The SW5 G3/4 Ultraviolet light UV-C sensor is a UV sensor with a G3/4 thread for operation in water. It is 10 bar water pressure resistant and is typically used for monitoring Hg medium-pressure UV lights in pressurized water. It will be configured on individual requirements which are clarified within the order process. Configurable parameters are the signal output type, the measurement range, and the spectral responsivity. The signal output is configurable as a 05V voltage output or 420mA current loop or photodiode output.

General Specification
