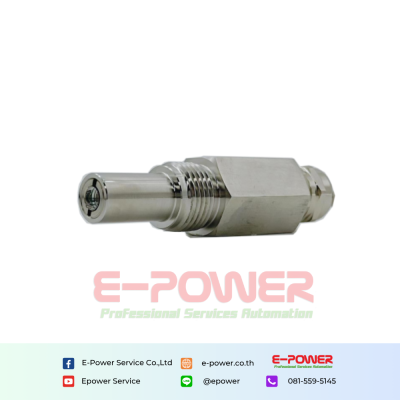

SW18 UNC3/4-16 Temperature UV Sensor

Overview

SW18 UNC3/4-16 Temperature UV Sensor Replacement for 42601

• Measure ultraviolet (UV) light relative/absolute UV intensity and Temperature

• The low-cost, high-accuracy sensor that is ideal for air purifiers and UV sterilizers

• Analog output (4-20mA, 0-5V)

• An easy-to-use, superior long-time stability and corrosion resistance

• For low-pressure UV lights

Main Features

• The SW18 UNC3/4-16 Temperature UV Sensor Replacement for 42601 is operating in water. It is 10 bar water pressure resistant and is typically used for monitoring low-pressure UV lights in pressurized water. It will be configured on individual requirements which are clarified within the order process. Configurable parameters are the signal output type, the measurement range, and the spectral responsivity. The signal output is configurable as 2 channels, channel 1:0-5v dc, channel 2:0-2.5v dc.

Parameter Specifications Table
